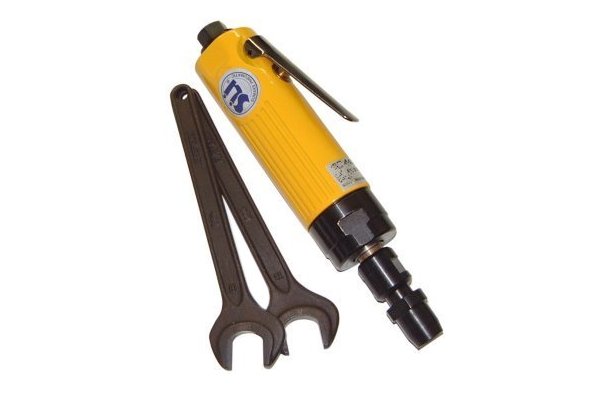

EC4 Pneumatic Evo Enamel Wire Stripper

The EC4 Evo Pneumatic Enamel Wire Stripping Machine is capable of processing between 0.28mm and 5.18mm Enamel Wires.

  1. General Details

    EC4 Pneumatic Evo Enamel Wire Stripper:

    The EC4 Magnet Wire Stripper will strip many film insulations including Enamel, Varnish, Formvar, ML etc for a range of wire sizes between 29 AWG (0.28mm O.D.) and 8 AWG (3.25mm O.D.). Using a high speed rotary stripping insert, which is precisely adjustable to match the diameter of the bare conductor, surface insulations is easily removed.  The insert on the EC4 Enamel Wire Stripper is held in a special adjustable chuck assembly which, when locked in position, allows precise repetitive stripping without risk of damage to the conductor.

    EC4 Pneumatic Enamel Wire Stripping Machine Operation – Simple Setup & Stripping Operation:

    1. Loosen the Chuck Assembly with the two wrenches provided.
    2. Place Stripping Insert into the chuck and hand tighten.
    3. Place the work piece into the insert and tighten the Chuck Assembly with the wrenches provided so that the insert closes but the work piece can still be removed.
    4. Remove the work piece and start the EC4.
    5. Strip the wire by pushing into the Stripping Insert and remove to examine.
    6. If insulation is not completely removed, switch of EC4, tighten Chuck Assembly and repeat stripping operation.

  2. Insert Selection

    Stripping Insert Options:

    Tapered BulletConical FaceFlat Face
    For stripping in confined areasFor ease of wire entry into insertFor stripping flush to the coil body

    Stripping Insert Selection:
    Wire SizeHeavy DutyCarbide
    AWGNominal O.D. (mm)Cross Section Area
    Conical FaceFlat FaceTapered BulletSlot Size Tech Info OnlyFlat Face
    29-200.28-0.810.06-0.52C1 (UK3341)F1 (UK3351)B1 (UK3361)0.8mm728C
    20-160.81-1.300.52-1.33C2 (UK3342)F2 (UK3352)B2 (UK3362)1.2mm732C
    16-141.30-1.631.33-2.09C3 (UK3343)F3 (UK3353)B3 (UK3363)1.6mm736C
    14-121.63-2.062.09-3.33C4 (UK3344)F4 (UK3354)B4 (UK3364)2.0mm740C
    12-102.06-2.593.33-5.27C5 (UK3345)F5 (UK3355)B5 (UK3365)2.4mm-
    10-82.59-3.255.27-8.30C6 (UK3346)F6 (UK3356)-2.8mm-
    8-63.25-4.118.30-13.30-F7** (UK3351)---
    6-44.11-5.1813.30-21.10-F8** (UK3351)---
    **Note to use F7 and F8 Inserts with Larger Chuck Assembly - Must be purchased UK3406.

  3. Technical Data

    EC4 Pneumatic Enamel Wire Stripper Technical Data:
    Dimensions: 270 x 38mm
    Weight: 1Kg
    Air Supply: Oil Daily 60-70 PSI
    Warranty: 12 Months

    Product Order Code:
    MUK3400 – EC4 Pneumatic Evo Enamel Wire Stripper
