HQ Series of Portable Enamel Strippers up to 6mm OD
The HQ30 and HQ35P Enamel Strippers are hand held portable Wire Stripping units suitable for stripping up to 6mm OD
Description
Additional information
HQ30 Brush Options
HQ35P Brush Options
Product Video
HQ Series of Portable Enamel Strippers:

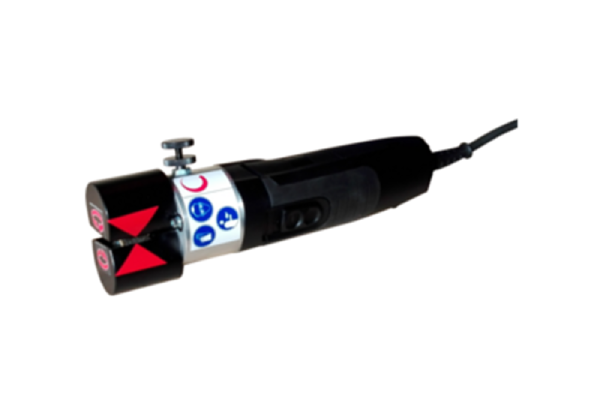

The HQ30 and HQ35P Enamel Strippers are hand held portable Enamel Wire Stripping units suitable for stripping Enamel Wire up to 6mm OD.
The HQ30 Enamel/Magnet Stripper is specially designed for thinner round and flat wires. The wire is pulled into the machine by the stripping brushes operating in opposite directions. The HQ35P Enamel/Magnet Stripper is more suited to thicker round or flat wires.
The brushes work in synchronization and therefore do not exert and pull on the wire. For wire brush options, please see the relevant tabs.
| Weight | 2.4 kg |
|---|---|
| Brush Size | HQ30 = 30mm, HQ35P = 35mm |
| Voltage | 230v/50Hz (110v Available on request) |
| Machine Warranty | 12 Months |
HQ30 Brush Options
| Brush Type/Part Number | Recommended Wire Size |
|---|---|
| SRB30.10 | 0.15-0.60mm |
| SRB30.15 | 0.40-1.00mm |
| SRB30.20 | 0.60-1.50mm |
| SRB30.25 | 0.80-2.00mm |
| SRB30.30 | 1.00-3.00mm |
HQ35P Brush Options
| Brush Type/Part Number | Recommended Wire Size |
|---|---|
| SRB35.10 | 1.00-2.00mm |
| SRB35.15 | 1.50-2.50mm |
| SRB35.20 | 2.00-3.00mm |
| SRB35.25 | 2.50-4.00mm |
| SRB35.30 | 3.00-6.00mm |
