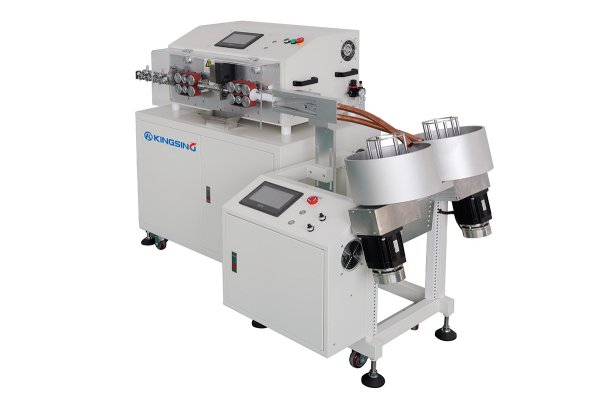

KS-W170 Automatic Cut & Strip Machine with Coiling System
The KS-W170 Automatic Cut & Strip Machine with coiling system is capable of processing up to approx 14mm OD with stripping lengths up to 140mm on the leading end and 130mm on the trailing end.
- General Details
KS-W170 Automatic Cut & Strip Machine with Coiling System:
Introducing the brand new KS-W170 Automatic Cutting & Stripping Machine with Coiling Pan System. This new model offers a wide production range which is capable of processing up to approx 14mm O.D Cables with stripping lengths up to 140mm.
The dual bowl coiling system is able to coil long wires and cables into bundles ready for packaging, this machine allows the operator to collect wire from one bowl whilst the machine is loading the next cable into the other coiling bowl, with this design it improves through-put over single bowl designs. Equipped with servo motors and belt driven feeding method, this machine is highly accurate in wire measuring, cutting and stripping.
- Technical Data
KS-W170 Automatic Cut & Strip Machine with Coiling System Technical Data:
Max Wire Diameter: Approx 14mm O.D.
Max Wire Gauge: 35mm²
Max Wire Cutting Length: 100m
Max Wire Stripping Lengths: Leading End: Max 140mm, Trailing End: Max 130mm
Roller Lifting Function: Servo Motor Roller Lifting
Conduit Jumping Function: Servo Motor
Program Memory: Max 100 Sets
Wire Winding Lengths: 3.5-20m
Drive Mode: 8 Wheel Drive (with Drive Belts)
Motor: Servo Motor
Operation Interface: Colour Touch Screen
