MESSBOI 10 Wire Measuring Device
The MESSBOI 10 Wire Measuring Device is a bench mounted mechanical length measuring device for winding materials up to a max outer diameter of 15mm. Accuracy of these Measuring Devices is +/- 2%.
- General Details
MESSBOI 10 Wire Measuring Device:
The MESSBOI 10 Wire Measuring Device is a mechanical length measuring device for winding materials up to a max outer diameter of 15mm and impresses with its high measuring accuracy, compact design and simple operation.
This measuring device is also available with a bench mount and also with a hand grip for mobile usage. All specifications can be found in the tab below and photos of each item can be found in the photo section.
3 Versions Available:

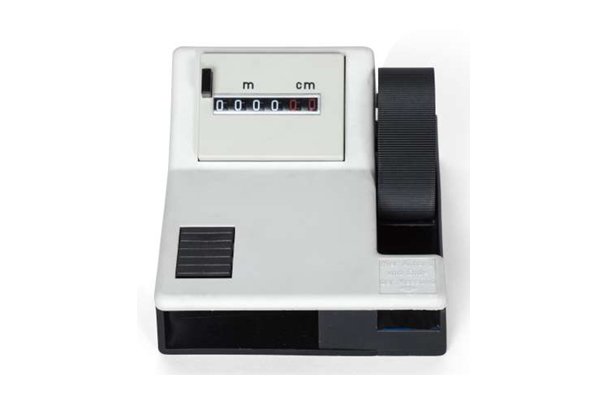

MESSBOI 10 – Standard Wire Measuring Device

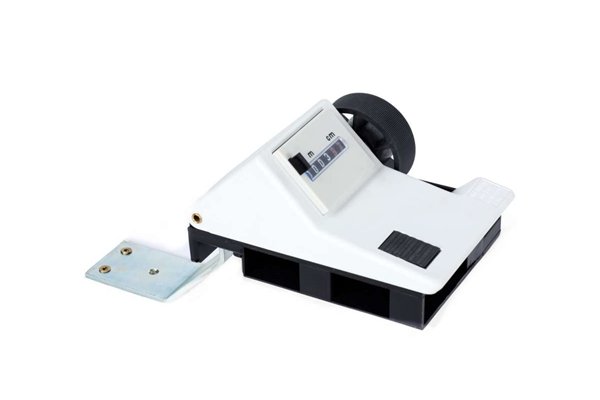

MESSBOI 10B – Wire Measuring Device with Bench Mount

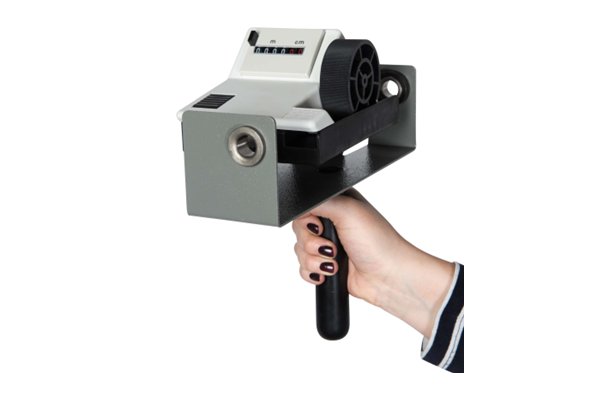

MESSBOI 10HT – Wire Measuring Device with Hand Grip - Measuring Device Specifications
MESSBOI 10 Specifications:
Model Number: MESSBOI 10 MESSBOI 10B MESSBOI 10 HT Cable Diameters: 1-15mm 1-15mm 1-15mm Measuring Force: Spring Pressure Spring Pressure Spring Pressure Measuring Length: 9999.99m 9999.99m 9999.99m Measuring Accuracy: +/- 2% +/- 2% +/- 2% Dimensions: 160 x 110 x 90mm 260 x 110 x 140mm 250 x 110 x 250mm Weight: 0.5Kgs 0.7Kgs 1Kgs Product Order Code: MCKM-MES10 MCKM-MES10B MCKM-MES10HT
