This Cut & Strip Machine is the Best Selling Cut & Strip Machine in the Range due to it's low price and high performance. This machine will process a maximum wire OD of 5mm.
- General Details
KS-W602 Automatic Cut & Strip Machine:

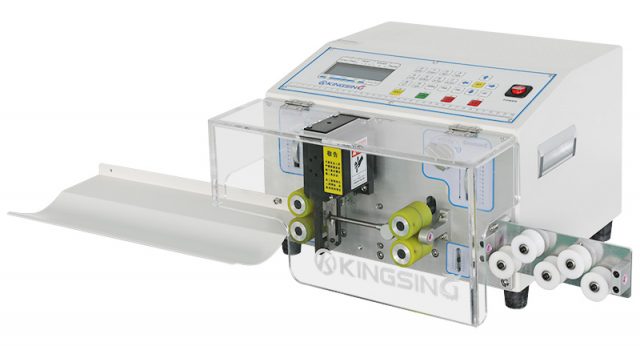

Introducing the brand new KS-W602 Automatic Cut & Strip Machine. This new model has now replaced the excellent KS-09C Cut & Strip Machine. This new machine offers a wider production range compared to the old KS-09C Cutting and Stripping Machine. This new Cut & Strip Machine can process wire in the range of 11-30AWG (0.1-4.0mm²) with stripping lengths up to 35mm on both ends of the wire. This machine is supplied as standard with steel rollers and not the urethane rollers as per the photos.
This Cut and Strip Machine is easy to program via menu driven software and an LCD display and is fast to setup with no change of tooling required other than the guide tube. Up to 99 different cutting and stripping programs can be stored making this machine suitable for a very wide range of applications. It offers a high level of accuracy +/- 0.002 x length and is fast, able to cut and strip up to 8000pcs/hour. This machine also features a middle strip capability.

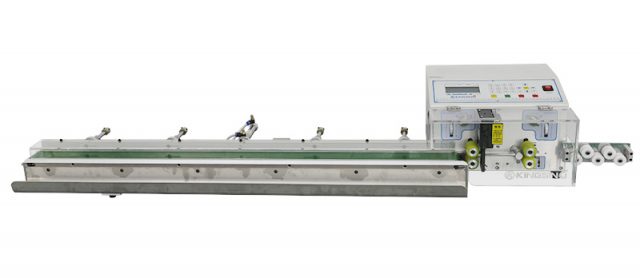

This new range of Cut & Strip Machines can also be used with the optional extra of a conveyor belt which is recommended to be purchase if the cable length is over 0.5 meters in length. The conveyor belt will be required to be purchased with the machine and cannot be added to the machine at a later date if required as each machine will have to be set up by the manufacturer to work alongside the Conveyor Belt. The overall length of the conveyor belt is 1.4 meters.
- Technical Data
KS-W602 Automatic Cut & Strip Machine Technical Data:
Available Wire Size: 0.1-4mm² (11-30 AWG)
Max Cable Diameter: Approx 5mm O.D.
Cutting Length: 0.1-100000mm
Stripping Lengths: Leading & Trailing End: 0-35mm
Max Middle Stripping Sections: 15 Sections
Memory Function: Up to 100 Programs
Cutting & Stripping Accuracy: +/- 0.002mm x Length
Drive Mode: 4 Wheel Drive
Display: LCD Display
Blade Material: Hard Tungsten Steel
Power Rating: 430W
Voltage: 220V/50Hz (110V/60Hz)
Net Weight: 26Kgs
Dimensions: 400 x 410 x 280mm
