KS-W002 Servo Motor Driven Automatic Cut & Strip Machine
The KS-W002 Automatic Cut & Strip Machine is capable of processing up to approx 18mm OD with stripping lengths up to 200mm on the leading end and 150mm on the trailing end.
- General Details
KS-W002 Servo Motor Driven Automatic Cut & Strip Machine:
Introducing the Brand New KS-W002 Automatic Servo Motor Driven Cut & Strip Machine. This New Cut & Strip Machine is capable of processing wires up to approx. 18mm O.D with stripping lengths up to 200mm.
The KS-W002 Cut & Strip Machine adopts feed belts instead of normal steel feed rollers so that there is no damage caused to the jacket of the wires. The output rollers lift up automatically to allow a longer stripping length to the leading end of the wire and to reduce stripping resistance. The feeding roller distance and pressure can all be adjusted via the Touch Screen Display.

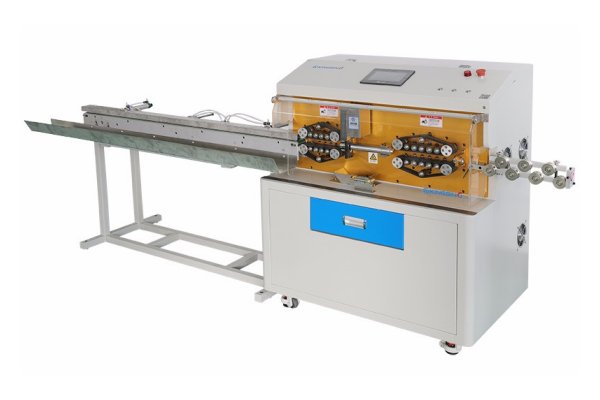

An optional 1.5m Conveyor Belt can also be purchased for this machine however this must be ordered at the same time as the machine and cannot be added to the machine at a further date.
- Technical Data
KS-W002 Servo Motor Driven Automatic Cut & Strip Machine Technical Data:
Max Cable Diameter: Approx 18mm O.D.
Cutting Lengths: 90-99000mm
Max Stripping Length (Leading End): 200mm
Max Stripping Length (Trailing End): 150mm
Stripping Accuracy: +/- 0.002 x Length
Feeding Speed: 0.8m/s
Drive Mode: 8 Wheel Drive (With Feed Belts)
Weight: 220Kgs
Product Order Code:
MCKS-W002 – KS-W002 Servo Motor Driven Automatic Cut & Strip Machine - Product Video
