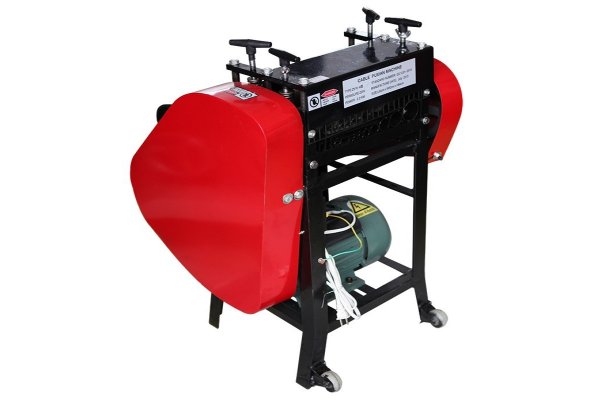

KS-S304 Scrap Wire Recycling Machine

The KS-S304 Copper Wire Stripping Machine has multiple stripping channels/guides for various wire sizes ranging from 0.5mm to 38mm O.D.

  1. General Details

    KS-S304 Scrap Wire Recycling Machine:

    Introducing the Brand New KS-S304 Scrap Copper Wire Stripping Machine. This copper wire stripping machine has multiple stripping channels/guides for various wire sizes ranging from 0.5mm to 38mm O.D. This simple copper stripping machine is very easy to use by inserting the wire into the suitable channel/guide, the upper and lower blades will then slit the outer insulation which will then reveal the inner copper wires to be removed.

    3 Models of the KS-S304 Cable Reclamation Machine are available:
    Type A = 0.5-12mm OD (10 Feed/Stripping Holes)
    Type B = 1.5-25mm OD (10 Feed/Stripping Holes)
    Type C = 1.5-38mm OD (9 Feed/Stripping Holes)

  2. Technical Data

    KS-S304 Scrap Copper Wire Stripping Machine Technical Data:
    Available Cable Size: 0.5-38mm O.D.
    Power Supply: 220/380V (1.5-2.2KW)
    Daily Output: 100-300Kgs
    Dimensions: 540 x 520 x 840mm
    Net Weight: 81Kgs

    Product Order Codes:
    MCKS-S304A – KS-S304 Type A Scrap Copper Cable Stripper 0.5-12mm OD
    MCKS-S304B – KS-S304 Type B Scrap Copper Cable Stripper 1.5-25mm OD
    MCKS-S304C – KS-S304 Type C Scrap Copper Cable Stripper 1.5-38mm OD
