- General Details

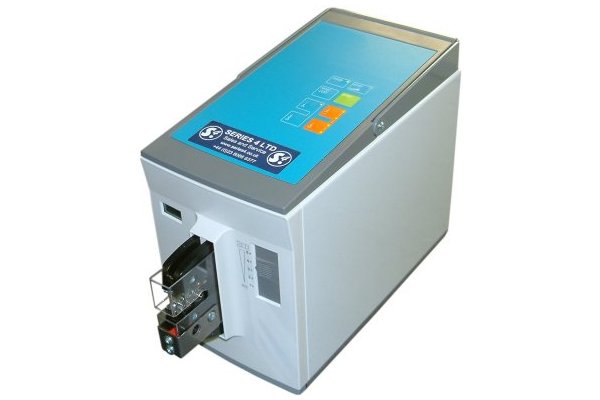

EC65 Electric Crimper:
The EC65 Electric Crimping Machine is compact and lightweight, yet rugged enough for the factory floor. It is well suited for complex cable harness assembly application. The EC65 Electric Crimping Machine can be operated in one of two modes.
Mode 1: Operates the entire crimping process with on depression of the foot pedal.
Mode 2: Allows the user to fix the terminal on the crimp die set by depressing the foot pedal once, allowing you to insert the cable and then the second depression of the foot pedal actually finishes the crimping process. Mode 2 is used when more complicated terminals are selected
Please view the PDF Product Document above for the range of dies sets and guards available for the EC65 Crimper.
As the die gets closed, the full press capacity is limited to insure safety. The beginning of the press power can be adjusted with each new terminal to satisfy crimp integrity. That way damage to the dies & terminals can be minimised. Simply press a button to select the width of the opening of each die. Since some female terminals are more difficult to crimp, a movable locator can be utilized to insure proper crimping as well as making the crimping easier and more precise.
- Technical Data
EC65 Electric Crimping Machine Technical Data:
Max Press Capacity: 10KN
Dimensions: 140 x 220 x 320mm
Weight of Foot Pedal: 1.2Kgs
Pressing Time: 1 Second
Counter: 6 Digit LCD Display
Voltage: 230V/50Hz (120V/60Hz Available on request)
Power Consumption: 160VA
Warranty: 12 Months
Product Order Code:
MC0265 – EC65 Electric Crimping Machine
