TROMTRAK 1250 Heavy Cable Drum Unwinder up to 500Kgs
The TROMTRAK 1250 Heavy Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free up to 500Kgs in weight.
Available on back-order
Description
TROMTRAK Specifications
TROMTRAK 1250 Heavy Cable Drum Unwinder
The TROMTRAK 1250 Heavy Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
Features:
• Suitable for usage in a mechanical processing line
• Base frame with breakable driving wheels
• Drum axle with adjustable shoe brake
• Double bearing axle
• Stable steel welded construction
TROMTRAK Specifications

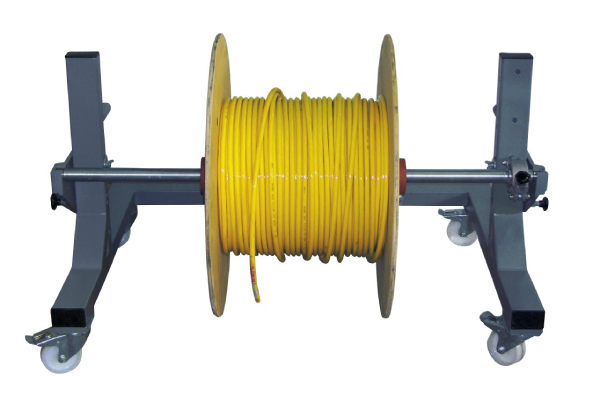

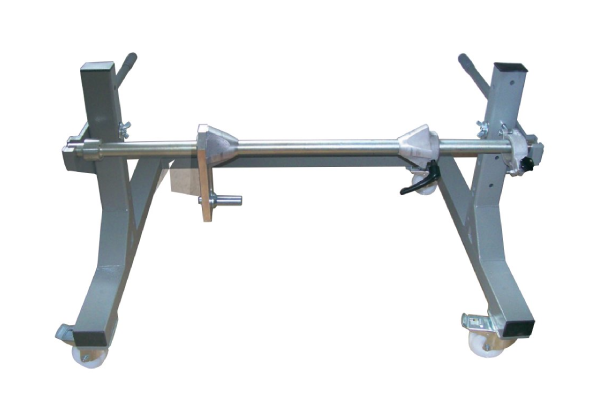

| Model Number | TROMTRAK 1250 with Centering Cones | TROMTRAK 1250-1 with Driving Pin 25mm OD | TROMTRAK 1250-2 with Driving Pin 28mm OD |
|---|---|---|---|
| Photo |  |  | |
| Adjustment Range Driving Pin | N/A | 80-170mm | 100-300mm |
| Cable Drum OD | 630-1250mm | 630-1250mm | 630-1250mm |
| Drum Axle OD | 35mm | 35mm | 60mm |
| Max Cable Drum Weight | 250Kgs | 250Kgs | 500Kgs |
| Max Cable Drum Width | 890mm | 810mm | 700mm |
| Dimensions (LxWxH) | 860 x 1300 x 720mm | 860 x 1300 x 720mm | 860 x 1300 x 720mm |
| Weight | 50Kgs | 50Kgs | 60Kgs |
