TROMBOI 7-10 & 9-14 Cable Drum Dispenser up to 2000Kgs
The TROMBOI 7-10 & 9-14 Cable Drum Dispenser enables the user to unwind large cable drums easily and twist free with maximum cable drum weights of 2000kgs.
Available on back-order

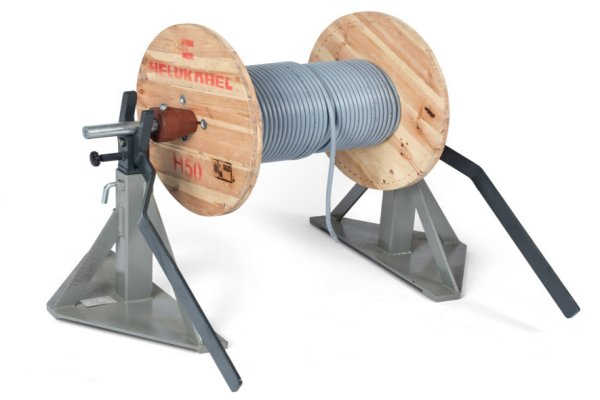

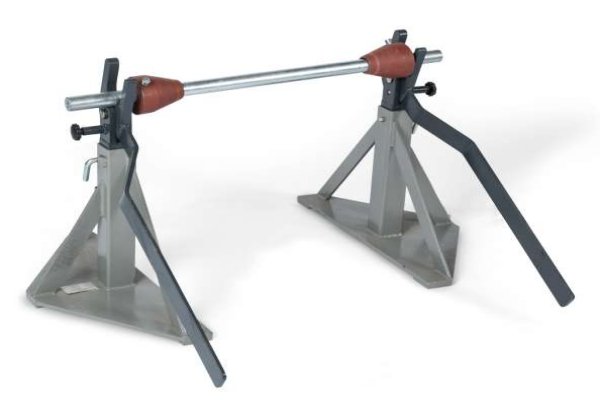

TROMBOI 7-10 & 9-14 Cable Drum Dispenser
The TROMBOI 7-10 & 9-14 Cable Drum Dispenser enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
Features:
• Due to axle bearing, only low tensile for is required
• Also suitable for cable drums with damaged drum flange (unwinding performance will not be affected due to axle bearing)
• High stability due to large dimensioned base plates
• Easy lifting of the cable drum via lever mechanism
• Stable steel welded construction
TROMBOI 7-10 & 9-14 Specifications
| Model Number | TROMBOI 7-10 | TROMBOI 9-14 |
|---|---|---|
| Cable Drum OD | 710-1000mm | 900-1400mm |
| Drum Axle inc. Cones (supplied as standard) | 34mm OD x 840mm Long | 60mm OD x 1140mm Long |
| Max Cable Drum Weight | 1000Kgs | 1700Kgs |
| Height Adjustable | 420-600mm | 700-830mm |
| Dimensions (LxW) | 500 x 240mm | 600 x 250mm |
| Weight (inc. Axle Cones) | 32Kgs/Pair | 51Kgs/Pair |
Extra Drum Axles (Optional)
| Part Number | KM85008010 | KM85008020 | KM85008030 | KM85008040 |
|---|---|---|---|---|
| Drum Axle OD | 34mm | 34mm | 60mm | 60mm |
| Drum Axle Length | 840mm | 1140mm | 1140mm | 1340mm |
| Max Loading Weight | 1000Kgs | 700Kgs | 1700Kgs | 2000Kgs |
| Drum Axle Weight | 9Kgs | 9.82Kgs | 12.6Kgs | 13.4Kgs |
| Suitable for TROMBOI 7-10 | Yes | Yes | No | No |
| Suitable for TROMBOI 9-14 | Yes | Yes | Yes | Yes |
