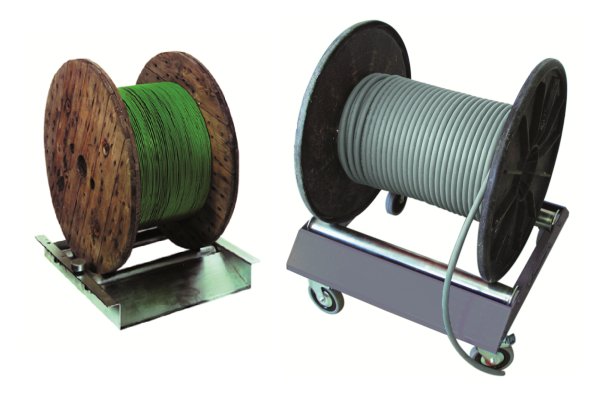

TROMBOI 500-1400 Manual Cable Drum Dereelers up to 1500Kgs
The TROMBOI 500-1400 Manual Cable Drum Dereelers enable the user to unwind cable drums made from wood, plastic, steel up to 1500kgs in weight.
Available on back-order
Description
TROMBOI 500-1400 Specifications
TROMBOI 500-1400 Manual Cable Drum Dereelers
The TROMBOI 500-1400 Manual Cable Drum Dereelers enable the user to unwind cable drums made from wood, plastic, steel and more, easily and twist free at the place of processing. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
Features:
• Compact design
• Loading ramp
• Easy, twist free unwinding
• Adjustable ball bearing mounted carrying rollers
TROMBOI 500-1400 Specifications
| Model Number | TROMBOI 500 Mobile | TROMBOI 800 | TROMBOI 1400 |
|---|---|---|---|
| Photo |  |  |  |
| Cable Drum OD | 150-700mm | 400-1000mm | 500-1800mm |
| Max Cable Drum Width | 520mm | 580mm | Variable |
| Max Cable Drum Weight | 140Kgs | 500Kgs | 1500Kgs |
| Side Guide Rollers | N/A | 2 Piece, Ball Bearing Mounted | 2 Piece, Ball Bearing Mounted |
| Unwinding Rollers | 2 Piece, Ball Bearing Mounted | 2 Piece, Double Ball Bearing Mounted | 4 Piece, Double Ball Bearing Mounted |
| Driving Wheels with Locking Brake (Full Set) | Yes | N/A | N/A |
| Dimensions (LxWxH) | 550 x 530 x 80mm | 700 x 700 x 140mm | (x2) 760 x 270 x 140mm |
| Weight | 8Kgs | 21Kgs | 27Kgs |
