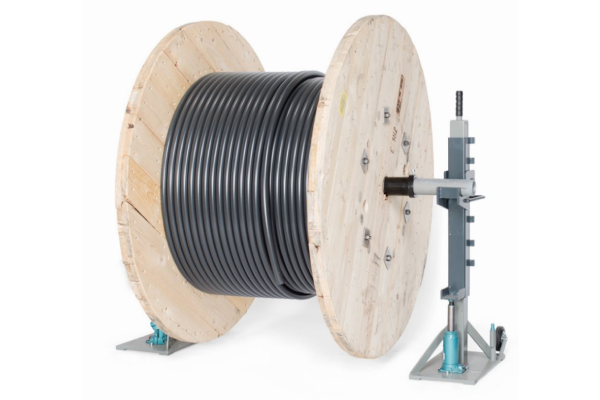

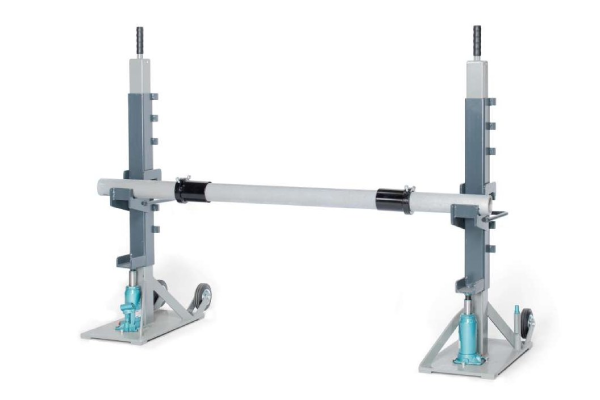

TROMBOI 2003 Large Cable Drum Dispenser up to 4000Kgs
The TROMBOI 2003 Large Cable Drum Dispenser enables the user to unwind large cable drums easily & twist free with maximum cable drum weights of 4000kgs.
Available on back-order
TROMBOI 2003 Large Cable Drum Dispenser
The TROMBOI 2003 Large Cable Drum Dispenser enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
Features:
• Suitable for heavy cable drums up to 4000Kgs
• Due to axle bearing, only low tensile for is required
• Also suitable for cable drums with damaged drum flange (unwinding performance will not be affected due to axle bearing)
• Easy lifting of the cable drum via hand operated hydraulic pump
• Lowering of the cable drum via vent screw
• Stable steel welded construction
TROMBOI 2003 Specifications
| Model Number | TROMBOI 2003 |
|---|---|
| Cable Drum OD | 900-2000mm |
| Drum Axle Size (supplied standard) | 76mm OD x 1700mm Long (with adjustment ring) |
| Max Drum Weight | 4000Kgs |
| Dimensions (LxWxH) | 550 x 300 x 1520mm |
| Weight (inc Axle & Cones) | 132Kgs/Pair |
Extra Drum Axles (Optional)
| Part Number | KM85008020 | KM85008030 | KM85008040 |
|---|---|---|---|
| Drum Axle OD | 34mm | 60mm | 60mm |
| Drum Axle Length | 1140mm including cones | 1140mm including cones | 1340mm including cones |
| Drum Axle Weight | 9.82Kgs | 12.6Kgs | 13.4Kgs |
| Max Loading Weight | 700Kgs | 1700Kgs | 2000Kgs |
