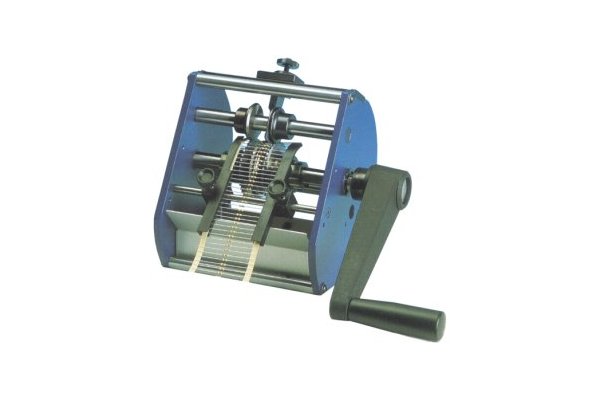

TP6/V/EC Low Cost Vertical Axial Component Forming Machine
The TP6/V/EC Low Cost Vertical Axial Component Forming Machine is designed to cut & bend taped Axial Components with Lead Diameters of 0.5mm to 1.3mm.
TP6/V/EC Low Cost Vertical Axial Component Forming Machine:
The TP6/V/EC Low Cost Vertical Axial Component Forming Machine is designed for cutting and bending taped Axial Components for vertical mounting.
The TP6/V/EC Axial Component Former is manufactured in two versions.
Version one of the TP6V-EC Vertical Component Former (TP6/V/1, 3, 4 & 5-EC) is for components with a lead diameter from 0.5-0.8mm (0.019-0.031″).
Version two of the TP6/V/EC Vertical Component Former (TP6/V/21, 22, & 23-EC) is for components with a lead diameter from 0.8-1.3mm (0.031-0.051″).
The bending pitch is determined by the bending cam supplied and can be changed by replacing the cam with one of different thickness. To be specified when ordering.
| Weight | 6 kg |
|---|---|
| Dimensions | 230 × 190 × 200 mm |
Machine Options
TP6/V/1-EC (MOL81.OL01) - 2.54mm Fixed Pitch: | TP6/V/3-EC (MOL81.OL03) - 3.8mm Fixed Pitch: |
TP6/V/4-EC (MOL81.OL04) - 5.08mm Fixed Pitch: | TP6/V/5-EC (MOL81.OL05) - 7.62mm Fixed Pitch: |
TP6/V/21-EC (MOL81.OL21) - 3.8mm Fixed Pitch: | TP6/V/22-EC (MOL81.OL22) - 5.08mm Fixed Pitch: |
TP6/V/23-EC (MOL81.OL23) - 7.62mm Fixed Pitch: | |
