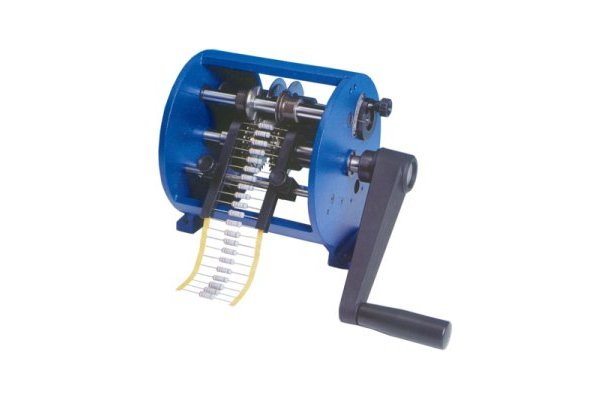

TP6 Standard Axial Component Cut & Bend Machine
The standard TP6 Axial Component Cut & Bend Machine is designed for cutting and bending taped Axial Components with Lead Diameters between 0.4 and 1.2mm.
Description
Additional information
Machine Options
Optional Extras
TP6 Standard Axial Component Cut & Bend Machine:
The standard TP6 Axial Component Cut & Bend Machine is designed for cutting and bending taped Axial Components. There are 6 versions of the TP6 Axial Component Forming Machines available, all with different cutting and bending capabilities. These Axial Component Formers will form components with a lead diameter, depending on machine version, of between 0.4 and 1.4mm diameter. Adjustments are an easy process using the tools provided. This is a high quality machine using long life cutting discs. The only maintenance required is to clean the cutting discs.
| Weight | 6 kg |
|---|---|
| Dimensions | 230 × 190 × 200 mm |
Machine Options

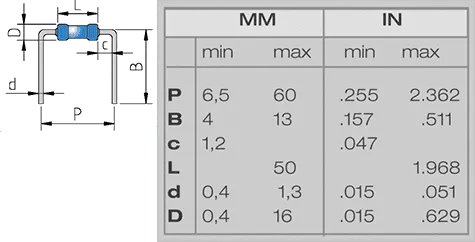

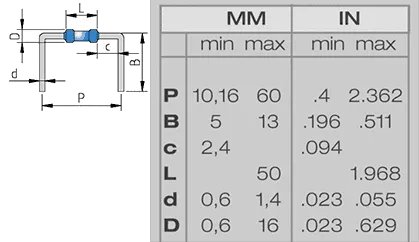

TP6/1 (MOL20.OL01) - Standard Version: | TP6/4 (MOL20.OL04) - Extra Reinforced Bend: |
||

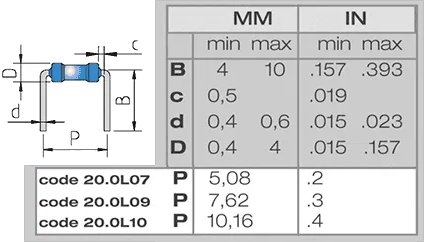

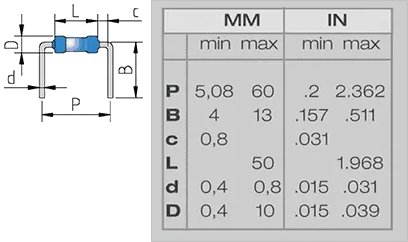

TP6/6 (MOL20.OL06) - V Reduced Bend - Variable Pitch: | TP6/7, TP6/9 & TP6/10 (MOL20.OL07, OL09 & OL10) - Reduced Bend, Fixed Pitch: |
||
Optional Extras

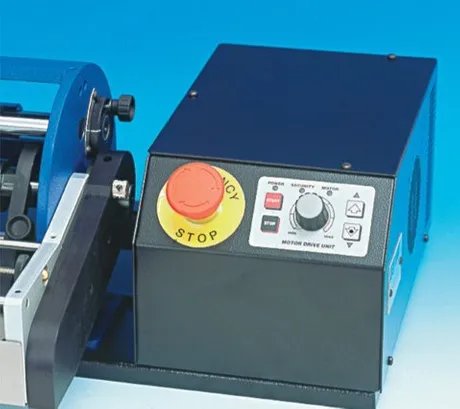

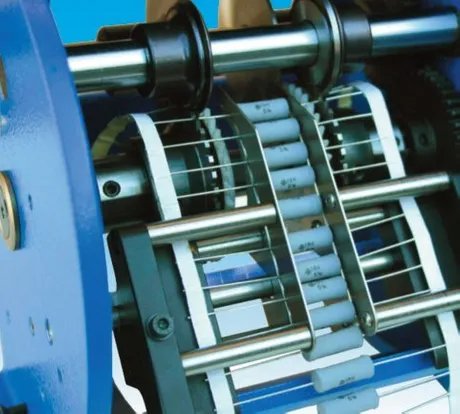

| OL400200 - BR6 Coil Holder Arm | OL7915030 - MOT98 Motor Unit 220V | OL200240 - Complete Body Component Guide |
 |  |  |

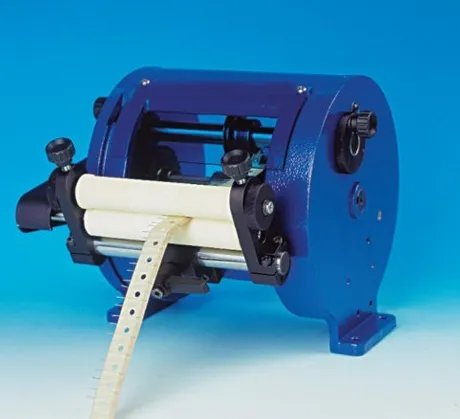

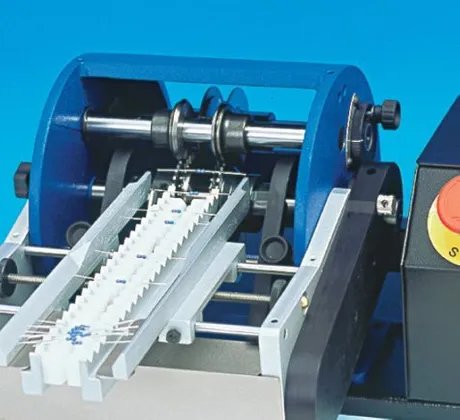

| OL21.0011 - TNS Waste Tape Ejector | OL51.0100 - CS10 Loose Feed Kit | |
 |  |
