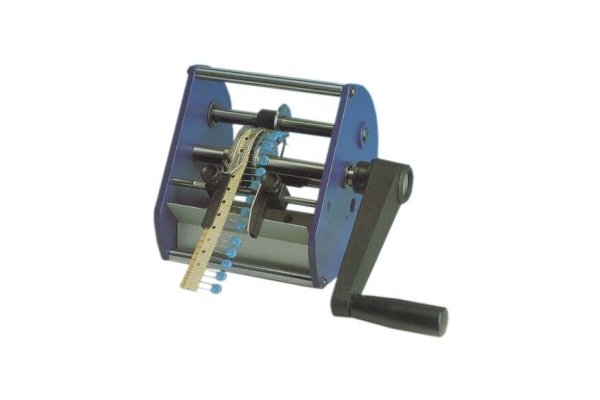

TP6/R-EC Manual Radial Component Cutter
The TP6/R-EC Manual Radial Component Cutter is designed for cutting taped radial components with leg diameters of 0.4mm to 1.0mm.
TP6/R-EC Manual Radial Component Cutter:
The TP6/R-EC Manual Radial Component Cutter is designed for cutting taped radial components from 0.4-1.0mm in diameter. There are two versions of the TP6/R-EC Low Cost Radial Component Cutter available, each with different driver wheels to accept 12.7mm and 15mm Pitch Tape. This is a high quality and reliable machine using long life cutting blades. Adjustment is a quick and easy process with the tools provided. The only maintenance required is to clean the cutting discs.
| Weight | 6 kg |
|---|---|
| Dimensions | 230 × 190 × 200 mm |
| Production | Up to 20,000pcs/hour |
| Warranty | 12 Months |

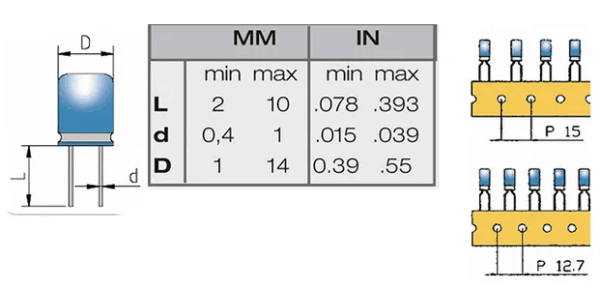

Specifications
2 Versions of the TP6/R-EC Manual Radial Component Cutter are available:
Option 1: Tape Hole Pitch = 12.7mm (MOL31.OL11)
Option 2: Tape Hole Pitch = 15.0mm (MOL31.OL12)
