TP6/PR-B Axial Component Cut, Bend & Forming Machine:

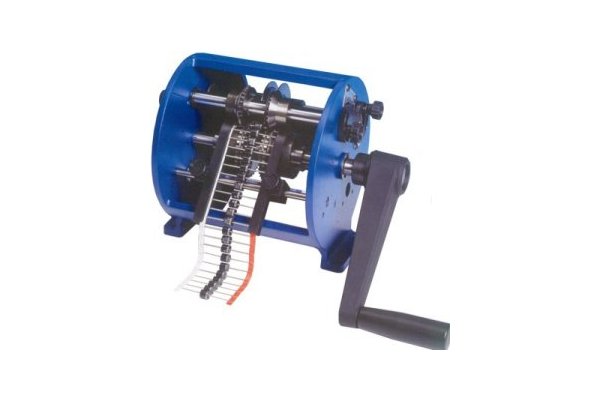

TP6/PR-B Component Cut, Bend & Forming Machine:

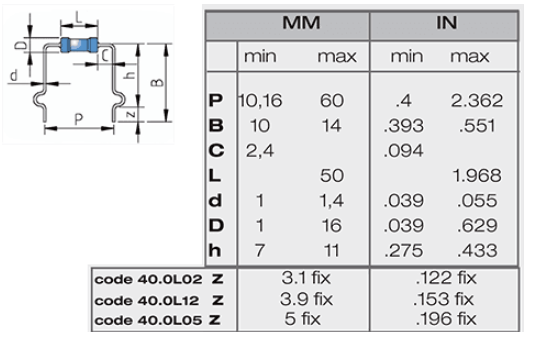

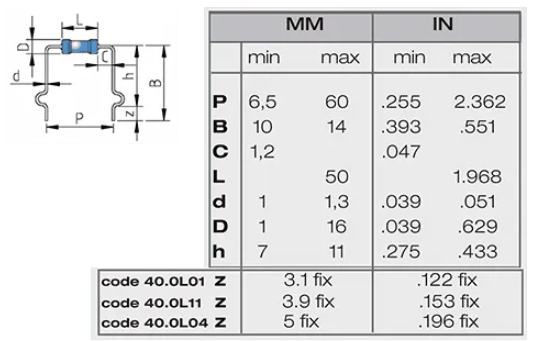

The TP6/PR-B Component Forming Machine is designed for Cutting, Forming and Bending Taped Axial Components. The “Stand-Off” form keeps the body off the PC Board. The machine handles components with lead diameters of 1.0mm to 1.4mm. With the TP6/PR-B, it is possible to exclude the kink, substituting the cutting/forming wheels with only cutting wheels.

TP6/PR-B/97 Component Cut, Bend & Forming Machine:
The TP6/PR-B/97 Component Forming Machine is designed for Cutting, Forming and Bending Taped Axial Components. The “Stand-Off” form keeps the body off the PC Board. The machine handles components with lead diameters of 1.0mm to 1.4mm. With the TP6/PR-B, it is possible to exclude the kink, substituting the cutting/forming wheels with only cutting wheels. Easy to set up and use. Does not require maintenance. This automatically adjusting system for the bending wheels is available with all versions of the TP6/PR-B/97 Machines.

The maximum pitch possible with the /97 system is 40mm and the maximum “B” is 10mm (please see specifications for more information). This machine can also be motorised with use of the MOT98 Motor Unit (OL7915030).
