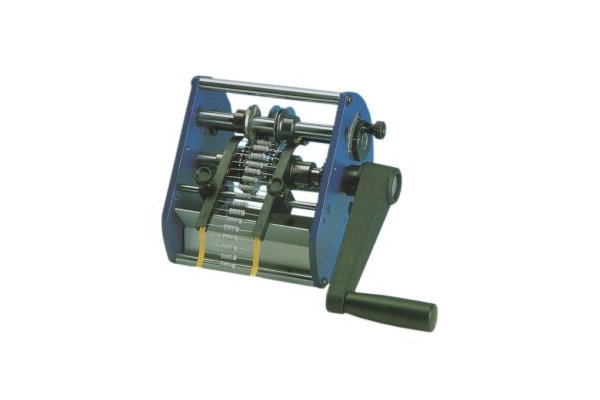

TP6/EC Low Cost Standard Axial Component Cut and Bend Machine
The Low Cost TP6/EC Axial Component Cut and Bend Machine is designed for cutting and bending taped Axial Components with Lead Diameters between 0.4 and 1.4mm.
TP6/EC Low Cost Standard Axial Component Cut and Bend Machine:
The TP6-EC Axial Component Cut and Bend Machine is designed for cutting and bending taped Axial Components. There are 5 different versions of the TP6-EC Axial Component Forming Machine, each with different cutting and bending capabilities. These machines will form components with a lead diameter depending on machine version of 0.4-1.4mm diameter. Adjusting the TP6-EC Axial Component Former is a quick and easy process with the tools provided. This is a high quality machine using long life cutting discs. The only maintenance required is to clean the cutting discs. This machine can only be used with the BR6 reel holder accessory. For the motorised version, see details on the TP6.
| Weight | 6 kg |
|---|---|
| Dimensions | 230 × 190 × 200 mm |
Machine Options

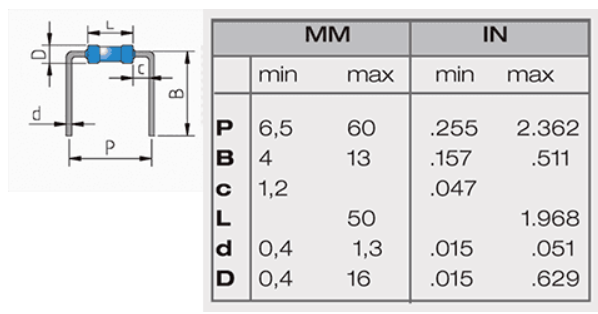

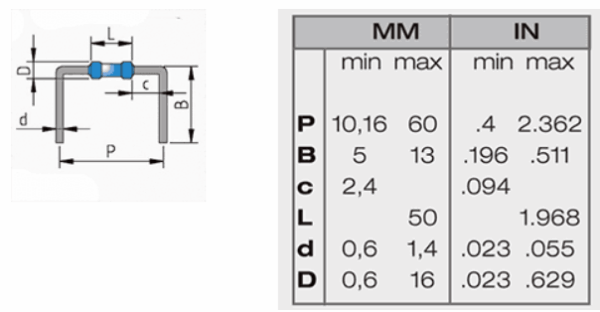

TP6/1-EC (MOL23.OL01) - Standard Version: | TP6/4-EC (MOL23.OL04) - Extra Reinforced Bend: |
||

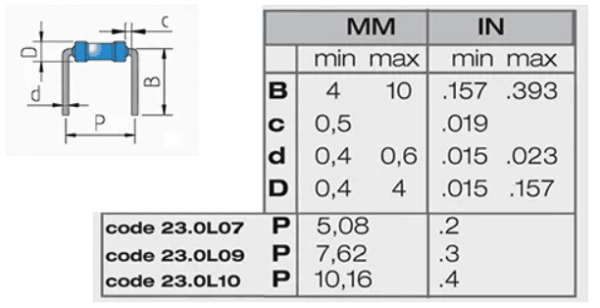

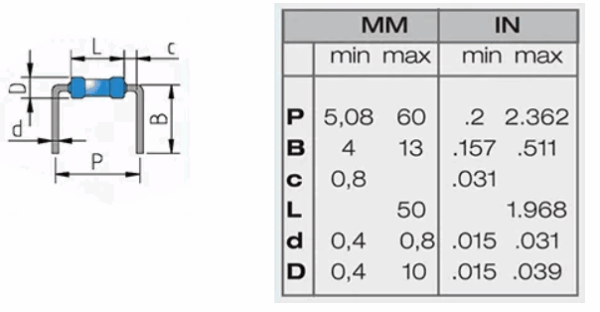

TP6/6-EC (MOL23.OL06) - V Reduced Bend - Variable Pitch: | TP6/7-EC, TP6/9-EC & TP6/10-EC (MOL23.OL07, OL09 & OL10) - Reduced Bend, Fixed Pitch: |
||
Optional Extra

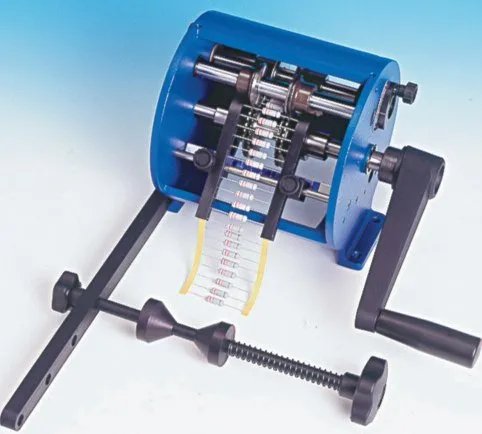

| OL400200 - BR6 Coil Holder Arm |
 |
