Telescopic Torque Arms for Sumake Screwdrivers
The Telescopic Torque Arms are ideal for using on the assembly line where space is at a premium and necessary for operator safety.
Telescopic Torque Arms:

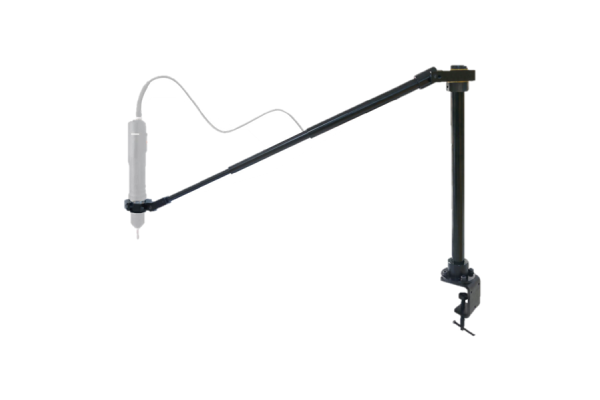

The Telescopic Torque Arms are ideal for using on the assembly line where space is at a premium and necessary for operator safety. The Linear Torque Arm collapses like a telescope and provides smooth operation and movement.
Features:
Eliminates torque reaction and removes weight of assembly tool from operators arm and back.
Easy to install on the workbench, wall, trolley or production line.
Can be used with both Air or Electric Screwdrivers.
Best if used with a spring balancer.
The arm collapses like a telescope providing smooth tool placement.
Attachment clamp is free to move 360 degrees.
Standard tool balancer should be used to hang the tool while using this linear torque arm.
Max torque capacity is 50Nm.
Max reach is 120cm, minimum reach is 43cm.
Torque Arm Range
| Model Number | Torque Arm Type | Max Torque (Nm) | Telescoping Length (Min/Max) (cm) | Clamp Dia (mm) | Weight (Kgs) | Applicable Screwdriver Models |
|---|---|---|---|---|---|---|
| TA-T050-100 | Bench Clamped | 50 | 43-100 | 38.5-52 | 33.3 | BN412~BN650 BK760~BK7120 BAK960~BAK9250 BAN9350~BAN9500 BANK960~BANK9500 BD203~BD650 BTN960~BTN9180 |
| TA-T050-120 | Bench Clamped | 50 | 50-120 | 38.5-52 | 34.2 | |
| TA-T050S-100 | Bench Fixed Type | 50 | 43-100 | 38.5-52 | 23.7 | |
| TA-T050S-120 | Bench Fixed Type | 50 | 50-120 | 38.5-52 | 24.6 | |
| TA-T050W-100 | Wall Mounted | 50 | 43-100 | 38.5-52 | 18.1 | |
| TA-T050W-120 | Wall Mounted | 50 | 50-120 | 38.5-52 | 19.0 | |
| TA-T050C-100 | Hanging Type | 50 | 43-100 | 38.5-52 | 19.5 | |
| TA-T050C-120 | Hanging Type | 50 | 50-120 | 38.5-52 | 20.3 |
