Sumake (FP/FL Series) Pneumatic Screwdrivers up to 28Nm

The Sumake Pneumatic Screwdrivers Range (0.1-28.0Nm) offer precise & repeatable low-medium torque ranges.

Categories:All Products, Electric/Pneumatic/Manual Screwdrivers
Brand: Sumake Industrial Co
Description

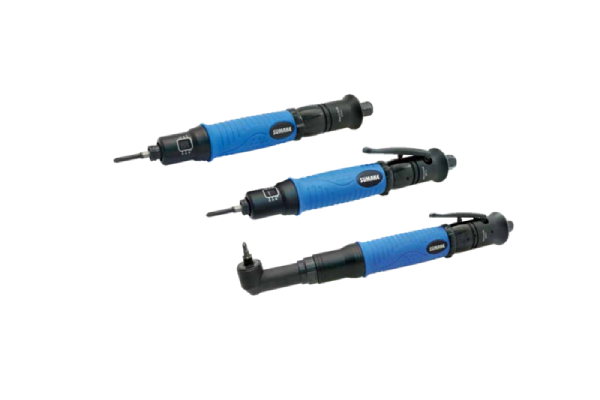

FP Push Start Series
FL Lever Start Series
FA Angle Lever Start Series

Sumake Pneumatic Screwdrivers:

The Sumake Pneumatic Screwdrivers offer an Evolutionary Upgrade in Full Auto Shut-off Air Screwdrivers.

  • A New experience of less noise and easy maintenance.
  • Torque Cover: To avoid the adjustment by operator and easy to mark the torque through the window.
  • External Torque Adjustment Ring Turn right to increase and left to decrease.
  • Attached 2pce high quality T.I.C.N bits which electroplated with durable material (Hv1800 2-3u) for longer operation.  single(9mm), Double(12mm)
  • One pulse with ±3% low deviation (Pat. No. 149380), MSC cross-path patent clutch system.
  • One-handed operation: Turn and change the rotary direction.
  • Speediness: Operator can change the bit rapidly by pull the bit sleeve.
  • 360° swivel Air inlet
  • Torque Rings System: SUMAKE Color Rings give you an easily visible torque marking system at a glance. Choice the color for each torque level used on your assemble line.
  • High technologic patent MCL motor with more 30% power than general type. (Pat. No. 151110)
  • Comfort: Uniquely sharped soft resin for ergonomic grip ” Top Wave” ergonomic design, best balance and easy to grip. The grip made thermophastic elastomer, the best material so far, with good touch and anti-glossy feature.

FP Push Start Series

Model
Number
Torque Range
(Nm) (+/- 3%)
Free Speed
(R.P.M)
Noise Level
(+/- 3dB(A))
Min Air Hose
Bore (mm)
Air Consumption
(m3/min)
Machine Screw
(mm)
Standard Screwdriver
Bit Size
FP0100.1-1.01000685.00.201.7-3.7B Hex 6.35mm
FP0200.3-2.02200725.00.282.2-4.5B Hex 6.35mm
FP0250.3-2.51800725.00.282.2-4.7B Hex 6.35mm
FP0350.5-3.51000725.00.282.8-5.0B Hex 6.35mm
FP0450.8-4.5800725.00.303.3-5.8B Hex 6.35mm
FP0501.0-5.0550725.00.303.5-6.0B Hex 6.35mm
FP0602.0-6.02200768.00.553.5-6.4B Hex 6.35mm
FP0751.2-7.51000768.00.554.1-6.9B Hex 6.35mm
FP1103.0-11.0550768.00.555.0-7.8B Hex 6.35mm
FP1803.0-18.0330768.00.555.0-9.3B Hex 6.35mm
FP2805.0-28.0250768.00.556.0-11.0B Hex 6.35mm

FL Lever Start Series

Model
Number
Torque Range
(Nm) (+/- 3%)
Free Speed
(R.P.M)
Noise Level
(+/- 3dB(A))
Min Air Hose
Bore (mm)
Air Consumption
(m3/min)
Machine Screw
(mm)
Standard Screwdriver
Bit Size
FL0100.1-1.01000685.00.201.7-3.7B Hex 6.35mm
FL0200.3-2.02200725.00.282.2-4.5B Hex 6.35mm
FL0250.3-2.51800725.00.282.2-4.7B Hex 6.35mm
FL0350.5-3.51000725.00.282.8-5.0B Hex 6.35mm
FL0450.8-4.5800725.00.303.3-5.8B Hex 6.35mm
FL0501.0-5.0550725.00.303.5-6.0B Hex 6.35mm
FL0602.0-6.02200768.00.553.5-6.4B Hex 6.35mm
FL0751.2-7.51000768.00.554.1-6.9B Hex 6.35mm
FL1103.0-11.0550768.00.555.0-7.8B Hex 6.35mm
FL1803.0-18.0330768.00.555.0-9.3B Hex 6.35mm
FL2805.0-28.0250768.00.556.0-11.0B Hex 6.35mm

FA Angle Lever Start Series

Model
Number
Torque Range
(Nm) (+/- 3%)
Free Speed
(R.P.M)
Noise Level
(+/- 3dB(A))
Min Air Hose
Bore (mm)
Air Consumption
(m3/min)
Machine Screw
(mm)
Standard Screwdriver
Bit Size
FA0200.3-2.02200705.00.282.2-4.5B Hex 6.35mm
FA0350.5-3.51000745.00.282.8-5.0B Hex 6.35mm
FA0450.8-4.5800745.00.303.3-5.8B Hex 6.35mm
FA0501.0-5.0550745.00.303.5-6.0B Hex 6.35mm
FA0602.0-6.02200748.00.553.5-6.4B Hex 6.35mm
FA0751.2-7.51000788.00.554.1-6.9B Hex 6.35mm
FA1103.0-11.0550788.00.555.0-7.8B Hex 6.35mm
FA1803.0-18.0330788.00.555.0-9.3B Hex 6.35mm
FA2805.0-28.0250788.00.556.0-11.0B Hex 6.35mm
