MESSBOI 25 Wire Measuring Device up to 25mm OD
The MESSBOI 25 Wire Measuring Device is suitable for measuring lengths of materials up to a max outer diameter of 25mm with accuracy up to 0.5%.
Description
MESSBOI 25 Options
MESSBOI 25 Wire Measuring Device

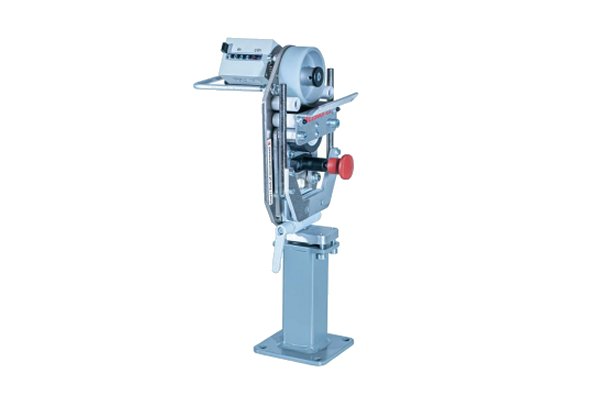

The MESSBOI 25 Wire Measuring Device is a mechanical length measuring device for winding materials up to a max outer diameter of 25mm and impresses with its extremely high measuring accuracy, compact design and simple operation.

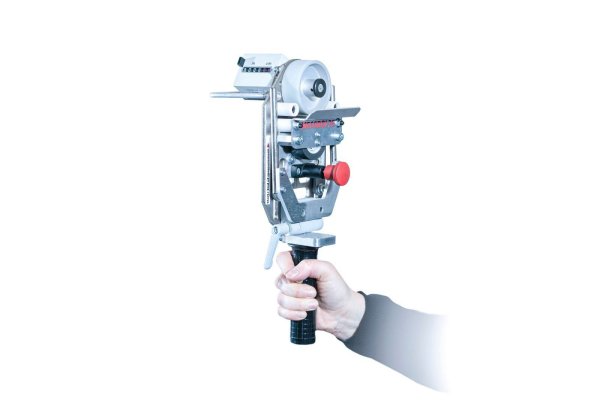

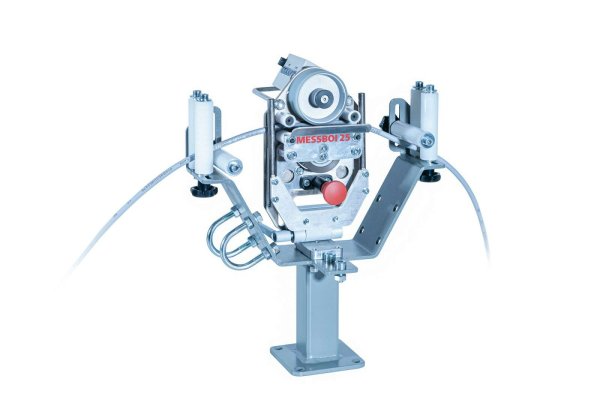

This Cable Measuring Device is bench mounted, there is a Socket & Roller Cage available for additional stability of the cable being measured through the Cable Measuring Device and also a Hand Grip for portable usage.
MESSBOI 25 Options
| Model Number | MESSBOI 25B | MESSBOI 25R | MESSBOI 25H |
|---|---|---|---|
| Photo |  |  |  |
| Measuring Range OD | 2-25mm | 2-25mm | 2-25mm |
| Max Measuring Length | 9999.99m | 9999.99m | 9999.99m |
| Measuring Accuracy | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Weight | 1.4Kgs | 2.1Kgs | 2.1Kgs |
| Dimensions (LxWxH) | 120 x 160 x 350mm | 120 x 160 x 350mm | 120 x 160 x 350mm |
