MESSBOI 10 Cable Measuring Device up to 15mm OD/100mm Flat
The MESSBOI 10 Cable Measuring Device is suitable for measuring lengths of materials up to a max outer diameter of 15mm and 100mm wide.
Available on back-order
Description
MESSBOI 10 Options
MESSBOI 10 Cable Measuring Device:
The MESSBOI 10 Cable Measuring Device is a mechanical length measuring device for measuring materials up to a max outer diameter of 15mm and impresses with its high measuring accuracy, compact design and simple operation. This measuring device is also available with a bench mount and also with a hand grip for mobile usage.
4 Versions Available:

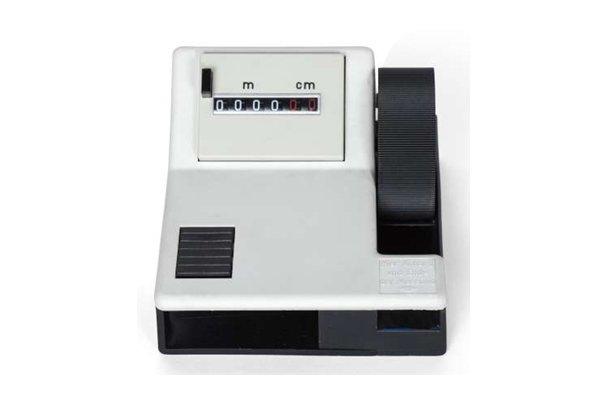

MESSBOI 10 – Standard Wire Measuring Device

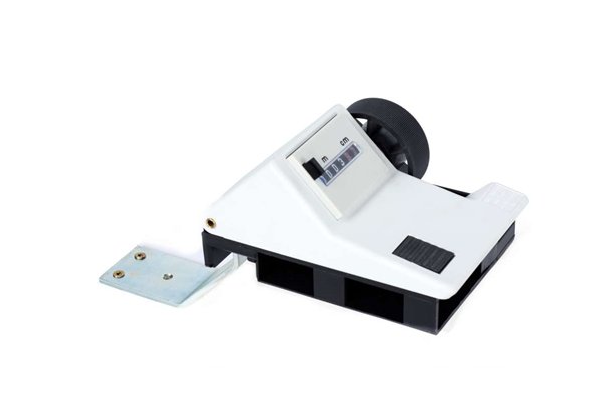

MESSBOI 10B – Wire Measuring Device with Bench Mount

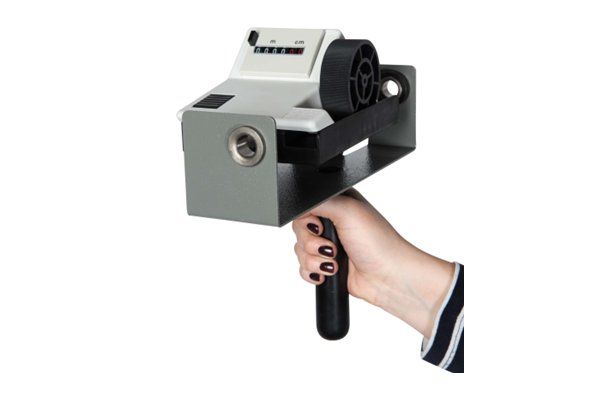

MESSBOI 10HT – Wire Measuring Device with Hand Grip

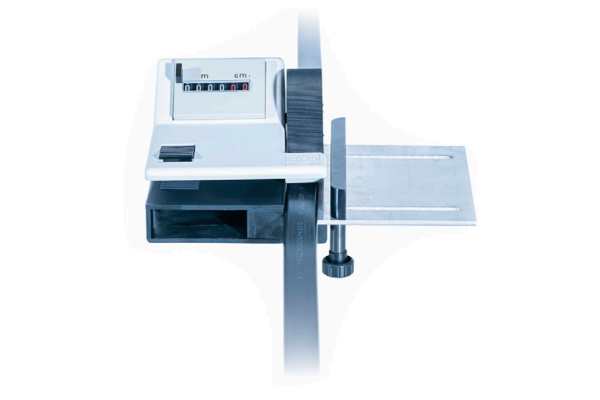

MESSBOI 10FLA – Flat Material Measuring Device
MESSBOI 10 Options
| Model Number | MESSBOI 10 | MESSBOI 10B | MESSBOI 10HT | MESSBOI 10FLA |
|---|---|---|---|---|
| Photo |  |  |  |  |
| Cable Diameters/Width | 1-15mm | 1-15mm | 1-15mm | 100mm Wide x 15mm OD |
| Measuring Force | Spring Pressure | Spring Pressure | Spring Pressure | Spring Pressure |
| Measuring Length | 9999.99m | 9999.99m | 9999.99m | 9999.99m |
| Measuring Accuracy | +/- 2% | +/- 2% | +/- 2% | +/- 2% |
