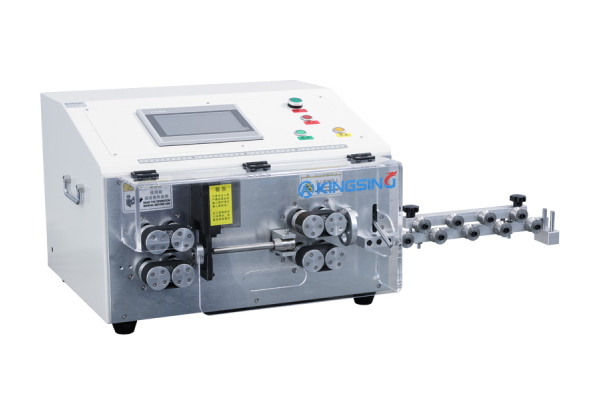

KS-W6231 Cable Cutting & Stripping Machine up to 15mm OD
The KS-W6231 Cable Cutting & Stripping Machine is capable of processing cables up to approx. 15mm OD with stripping lengths up to 150mm.
KS-KS-W6231 Cable Cutting & Stripping Machine:
The KS-W6231 Cable Cutting & Stripping Machine can process cable up to 15mm OD with stripping lengths up to 150mm on the leading end of the cable and 80mm on the trailing end of the cable.
This Cut and Strip Machine is easy to program via menu driven software and an LCD display and is fast to setup with no change of tooling required other than the guide tube. Up to 99 different cutting and stripping programs can be stored making this machine suitable for a very wide range of applications. It offers a high level of accuracy +/- 0.002 x length.
| Weight | 70 kg |
|---|---|
| Dimensions | 600 × 410 × 470 mm |
| Available Wire Size | 0.1-35mm² |
| Max Cable Diameter | Approx. 15mm OD |
| Cutting Length | 0.1-999999mm |
| Stripping Lengths | Leading End: 0-150mm, Trailing End: 0-80mm |
| Memory Function | Up to 99 Programs |
| Cutting & Stripping Accuracy | +/- 0.002mm x Length |
| Drive Mode | 8 Wheel Drive & Belts |
| Display | LCD Touch Screen |
| Blade Material | Hard Tungsten Steel |
| Power Rating | 650W |
| Voltage | 220V/50Hz (110V/60Hz on request) |
| Machine Warranty | 12 Months |
