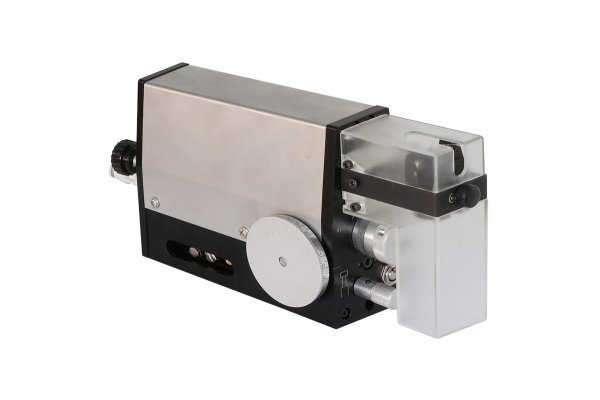

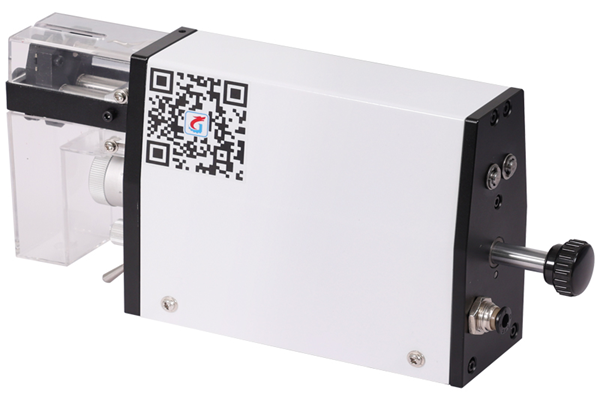

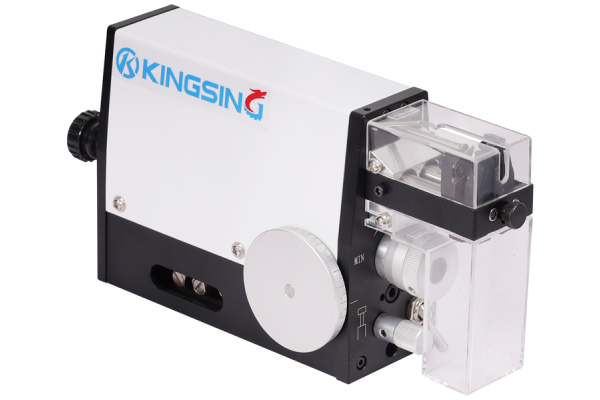

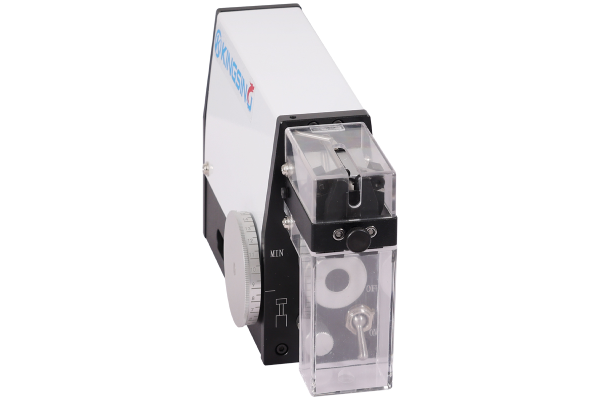

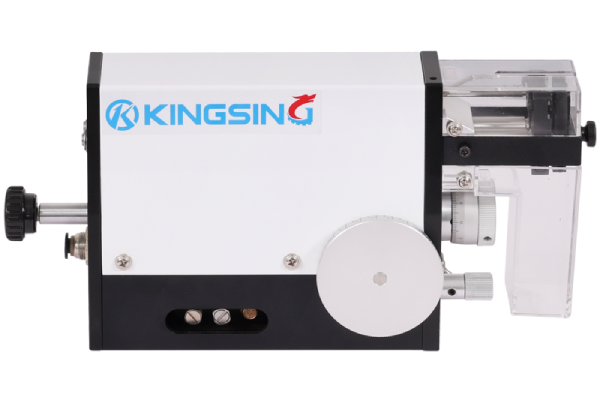

KS-W336 Pneumatic Wire Stripper up to 3.2mm OD
The KS-W336 Pneumatic Wire Stripper is suitable for processing single conductors and inner conductors from multi-core cables up to 3.2mm O.D.
KS-W336 Pneumatic Wire Stripper:
Introducing the New KS-W336 Pneumatic Wire Stripping Machine is suitable for processing single conductors and inner conductors from multi-core cables. The KS-W336 Pneumatic Wire Stripper is the perfect solution for stripping discrete wire and small conductors up to 3.2mm O.D (0.12″). This compact machine will strip up to 20mm (0.78″). The KS-W336 Air Operated Stripping Machine can also be set up for full stripping or half/partial pull off stripping.
Available Wire Types: Discrete Wire, Solid Wire, Stranded Wire, Single Conductor Cable, Wire, Cable, Rubber, PUR, PVC, Teflon, Tefzel etc.
| Weight | 2.4 kg |
|---|---|
| Dimensions | 265 × 70 × 135 mm |
| Wire Size | 0.03-2.08mm², 32-14 AWG, Max 3.2mm OD |
| Stripping Lengths | 1-20mm |
| Strip Length Increments (Full Strip) | 0.5mm (0.019") |
| Strip Length Increments (Partial Strip) | 2mm (0.078") |
| Precision of Diameter Setting | 0.01mm (0.001") |
| Required Air Pressure | 0.5-0.8Pa |
| Machine Warranty | 12 Months |
