KS-T523 Hydraulic Crimping Machines up to 200mm² Terminals
The KS-T523 Series of Hydraulic Crimping Machines are designed for crimping various terminals and large gauge wires up to 200mm².
Description
Specifications
Product Video

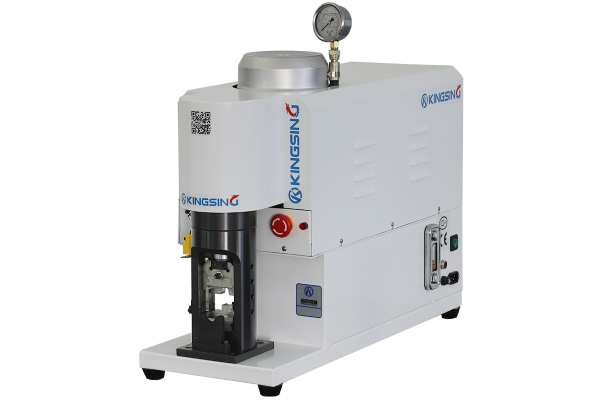

KS-T523 Hydraulic Crimping Machines
The KS-T523 Series of Hydraulic Crimping Machines are designed for crimping large gauge wires up to 200mm². Changing the Crimping Die Set on this Terminal Crimper is convenient, quick and various crimping shapes can be manufactured to suit customers requirements.
The KS-T523 Terminal Crimping Machine does not require an additional hydraulic station or an air line. This machine also has a pressure-holding function during crimping and a large crimping force of up to 40T.
This product is ideal for use with Electric Vehicle (EV) Cables.
Specifications
| Model Number | KS-T523A | KS-T523B |
|---|---|---|
| Crimping Force | 30T | 40T |
| Applicable Wire Size | 2.5-120mm² | 4-200mm² |
| Crimp Stroke | 50mm | 50mm |
| Production | 600-800pcs/hour | 600-800pcs/hour |
| Optional Tooling | Tooling can be manufactured to suit Crimp Terminals/Crimping Shape, please contact us. | |
| Motor Power | 1500W | 2200W |
| Power Supply | 220V, 50/60Hz | 220V, 50/60Hz |
| Weight | 96Kgs | 100Kgs |
| Dimensions | 800 x 350 x 700mm | 800 x 350 x 750mm |
| Machine Warranty | 12 Months | 12 Months |
