KS-H77 Heat Shrink Processing Machine – 550°C Max Temp
The KS-H77 Heat Shrink Processing Machine is a desk top machine designed for when the Heat Shrink Tube is located in the middle of the wires.
KS-H77 Heat Shrink Processing Machine:

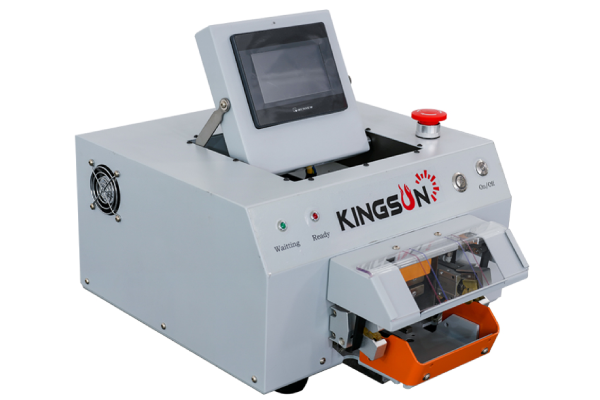

The KS-H77 Heat Shrink Processing Machine is a portable desk top machine mainly designed for the case where the Heat Shrink Tube is located in the middle of the wires. It’s small, compact size with fold up display is ideal for occasions where the machine may need to be transported from work bench to work bench or for use in smaller spaces.
This Heat Shrink Tube Processing Machine adopts advanced thermal infrared radiation technology for heating with the maximum temperature reaching 550ºC (the temperature can be adjusted via the touch screen). The cylindrical heating chambers allow for 360º heating of the tubing.
The KS-H77 Heat Shrink Processing Machine support 485 network port communication can be connected with a MES system to realise intelligent production. Temperature data will be stored for 14 days and the data can be viewed & exported at any time.
| Dimensions | 500 × 360 × 250 mm |
|---|---|
| Max Temperature | 550ºC |
| Heating Chamber ID | 32mm |
| Heating Chamber Width | 77mm |
| Max Wire Diameter | 15mm |
| Max Tube Length | 60mm |
| Power Rating | 500W |
| Power Supply | 110/220v, 50/60Hz |
| Machine Warranty | 12 Months |
