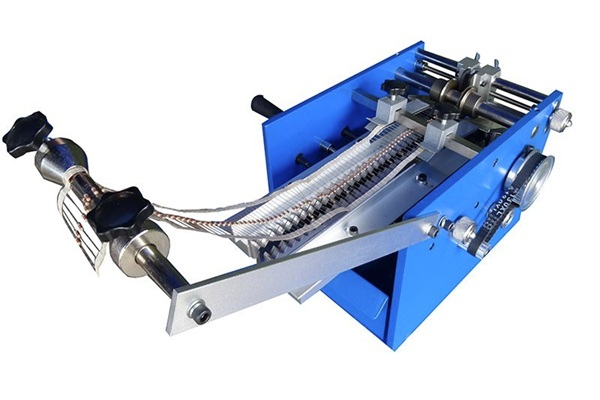

KS-F120 Axial Resistor Cut and Bend Machine
The KS-F120 is an extremely low priced Manual Resistor Cut and Bend Machine for components with lead diameters of 0.35-1mm.
Description
Additional information
F120U Specifications
F120F Specifications
KS-F120 Axial Resistor Cut and Bend Machine:
The KS-F120 is an extremely low priced hand-cranked Axial Resistor Cut and Bend Machine. This unit offers the very best balance of economy, quality, very compact and solid design to easily form and cut loose and taped radial components.
It is possible with the KS-F120 Axial Component Cut and Bend Machine to process up to 60,000 pieces per hour on this efficient system and it has the advantage of easy maintenance and very simple adjustment and operation. This standard model is suitable for components with a lead diameter of 0.35-1mm.
| Weight | 20 kg |
|---|---|
| Dimensions | 400 × 265 × 200 mm |
| Production | 40,000-60,000pcs/hour |
| Machine Warranty | 12 Months |
F120U Specifications
| A = 6-40mm |  |
| B = 3.6-15mm | |
| C = 1.2mm | |
| D = 1.5-8mm | |
| W = 0.35-1mm |
F120F Specifications
| A = 4-15mm |  |
| B = 1-15mm | |
| C = 3mm | |
| D = 1.5-8mm | |
| W = 0.35-1mm | |
| H = 25mm | |
| P = 3-13.5mm |
