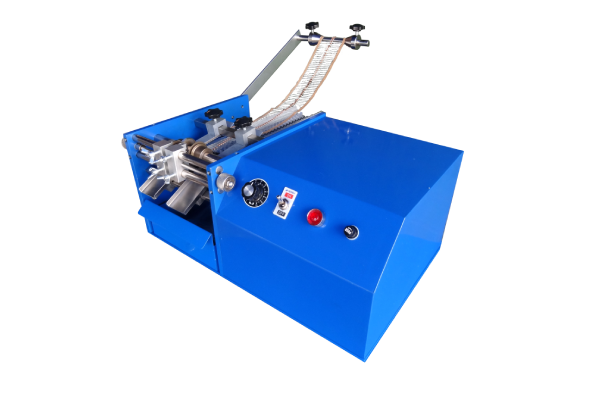

KS-F110 Axial Component Lead Former
The KS-F110 is an extremely low priced motor driven Axial Component Lead Former and Cutting Machine for components with lead diameters of 0.35-1mm.
Description
Additional information
KS-F110U Specifications
KS-F110F Specifications
KS-F110 Axial Component Lead Former:
The KS-F110 is an extremely low priced motor driven Axial Component Lead Former and Cutting Machine.
This unit offers the very best balance of economy, quality, very compact and solid design to easily form and cut taped axial components.
It is possible with the KS-F110 Axial Component Former & Cutter to process up to 60,000 pieces per hour on this efficient system and it has the advantage of easy maintenance and very simple adjustment and operation.
This standard model is suitable for components with a lead diameter of 0.35-1mm.
| Weight | 20 kg |
|---|---|
| Dimensions | 400 × 250 × 190 mm |
| Production | 40,000-60,000pcs/hour |
| Voltage | 220V/50Hz |
| Machine Warranty | 12 Months |
KS-F110U Specifications
| A = 6-40mm |  |
| B = 3.6-15mm | |
| C = 1.2mm | |
| D = 1.5-8mm | |
| W = 0.35-1mm |
KS-F110F Specifications
| A = 4-15mm |  |
| B = 1-15mm | |
| C = 3mm | |
| D = 1.5-8mm | |
| W = 0.35-1mm | |
| H = 25mm | |
| P = 3-13.5mm |
