KS-E5101 Enamel Wire Cut & Strip Machine up to 3mm OD
The KS-E5101 Enamel Wire Cut & Strip Machine has been specially designed for Cutting & Stripping Enamel Coated Wires up to 3mm OD.
Description
Additional information
Product Video

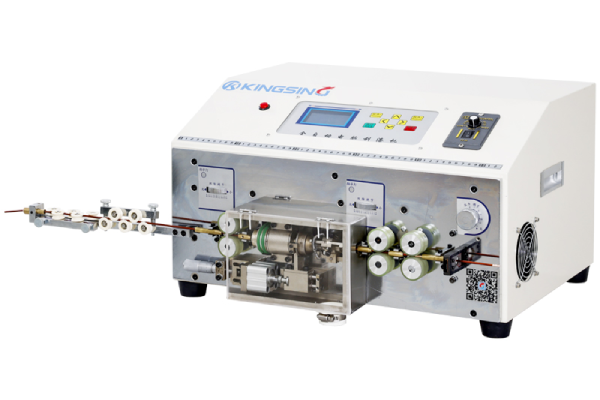

KS-E5101 Enamel Wire Cut & Strip Machine
The KS-E5101 Enamel Wire Cut & Strip Machine has been specially designed for Cutting & Stripping Enamel Coated Wires up to 3mm OD with stripping lengths up to 100mm. This Enamel Wire Cutting & Stripping Machine is equipped with Urethane Rollers so that there is no damage to the Enamel Coating caused by Standard Steel Rollers that are supplied on most Cutting & Stripping Machines.
| Weight | 45 kg |
|---|---|
| Dimensions | 670 × 530 × 340 mm |
| Enamel Wire Diameters | 0.7-3.0mm OD |
| Stripping Lengths (Head) | 0-100mm |
| Stripping Lengths (Tail) | 0-80mm |
| Cutting Length | 0.01-10000mm |
| Cutting Tolerance | 0.1-0.2mm x Cutting Length |
| Stripping Blade Material | Tungsten Steel Blades |
| Cutting Blade Material | High Speed Steel Blades |
| Speed Adjustment Range | 1-9 |
| Power | 280W |
| Power Supply | 220V/50Hz |
| Machine Warranty | 12 Months |
