JQ6100 Cut to Length Machine up to 100mm wide (8mm OD)
JQ-6100 Cut to Length Machine is suitable for Cutting a variety of different wires, tubing, hoses, flat material & more up to 100mm wide (approx. 8mm OD)
Description
Additional information
Product Video
JQ6100 Cutting Machine:

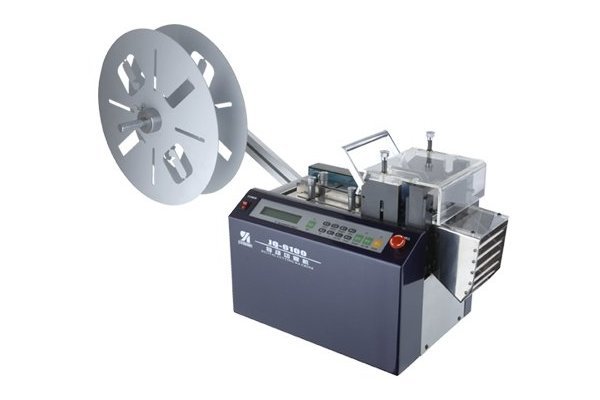

The JQ6100 Cutting Machine is a highly precise Cut to Length Machine capable of handling a wide variety of applications including tubing (various insulations), wires (soft and copper wires), hoses, ribbon cable and more.
This powerful Electric Cutter also offers a cutting detector sensor with a 2 second time control, wire-out sensor, a reversible cutting motor and a stepper type feed motor.
| Weight | 25 kg |
|---|---|
| Dimensions | 350 × 250 × 320 mm |
| Max Material Width | 100mm |
| Max Material OD | Approx. 8mm OD |
| Cutting Lengths | 0.1-99999.9mm |
| Largest Set No of Pieces | 99999pcs |
| Storage/Memory | 10 Programs |
| Voltage | 220-240V/50Hz |
| Machine Warranty | 12 Months |
