DPT50 Evo Digital Crimp Pull Tester
DPT50 Evo Digital Crimp Pull Tester:

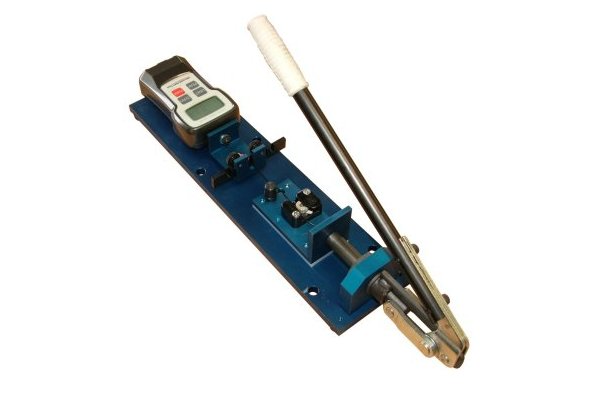

The DPT50 Digital Crimp Pull Tester can display results in Kg, Lbs or Newton's and has a peak setting for non-destructive testing. The Load Cell is mains or re-chargeable battery powered.
We can now supply the DPT50 Digital Pull Tester (50KG) in a 100KG version as shown above, this pull tester is not a stock item and would have to be built, please contact us regarding lead time.
(Please see exploded diagram spare parts list photo under product photos)
| Suggested pull off data for crimps: Please confirm with your customer the correct pull off data for each crimp & terminal. DO NOT use this data - this data is only a guide. |
|||
| Conductor Size | Minimum Pull-Off | ||
| CSA mm² | Strands/CSA | Kg | Newtons |
| 0.22 | 7/0.2 | 3.0 | 30 |
| 0.50 | 16/0.2 | 7.0 | 70 |
| 0.75 | 24/0.2 | 10.0 | 100 |
| 1.00 | 32/0.2 | 14.0 | 140 |
| 1.50 | 30/0.25 | 21.0 | 210 |
| 2.50 | 50/0.25 | 28.0 | 280 |
| 4.00 | 7/0.85 | 51.0 | 510 |
| 6.00 | 84/0.3 | 60.0 | 600 |
| 10.00 | 84/0.4 | 100.0 | 1000 |
DPT50 Digital Pull Tester Technical Data:
Dimensions: 100 x 480 x 140mm (245mm inc Handle)
Standard Crimp Profile Slots: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5mm (Specials available on request)
Weight: 3.2Kgs
Warranty: 12 Months
Product Order Codes:
MUK4800 - DPT50 Digital Pull Tester (50Kgs)
MUK4830 - DPT100 Digital Pull Tester (100Kgs)
Common Spare Parts:
UK4819 - DPT50 Cable Gripper
UK4808 - DPT50 Replacement Crimp Profile Blade
MCSL-SLD-50FGN - DPT50 Force Gauge
