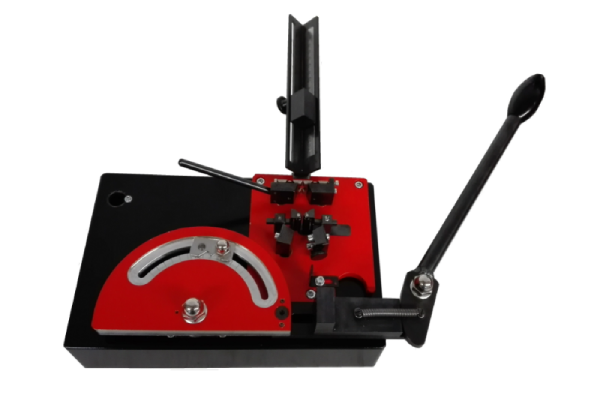

D2 Multicore Cable Stripper

The D2 Multicore Cable Stripper is a quick and simple solution to stripping both the Outer Jacket and Inner Cores from multicore cables up to 15mm OD. By a single pull on the handle, precision die blades strip off the outer insulation and secondary blades strip the inner conductors to preset dimensions. The D2 Wire Stripper is effective with PVC, Neoprene, Rubber and comparable insulations.

D2 Manual Outer Jacket and Inner Conductor Stripping Machine – Simple Set Up & Operation:

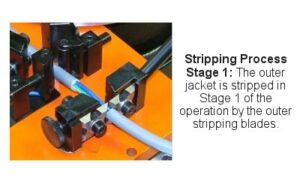

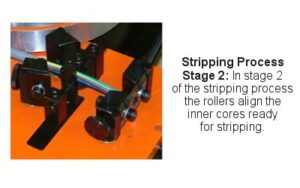

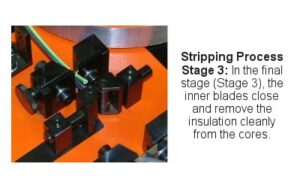

The outer jacket is stripped by selecting the nearest size of outer jacket die blades from the four position die blade set and setting the rear length stop to the correct strip length. The outer jacket blade holder is adjustable for cable diameter variations. As the outer jacket is stripped, the inner conductors are drawn through a set of pinch rollers which hold them in position for stripping by a set of flat blades in the secondary stripping operation. These blades are also adjustable for conductor diameter and are set to operate at the required position by adjustment of a cam operating lever. Once set, the cable can just be laid into the unit and with a single pull of the handle, the outer jacket and inner conductors are stripped with a cycle time of a few seconds.

Special blades for flat, oval and non-standard conductors are also available. By simply disabling the secondary stripping function the D2 can be used as an outer jacket stripper only.
