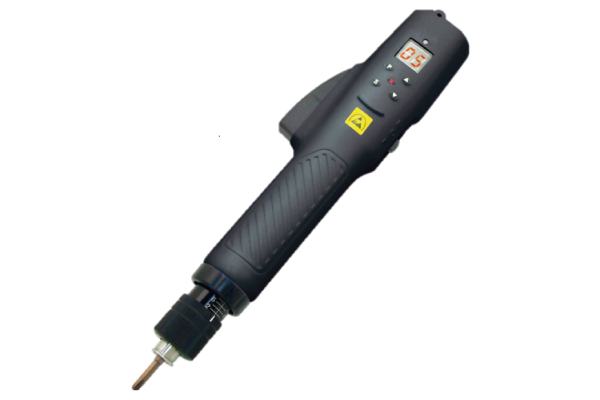

Sumake Built-In Screw Counter Electric Screwdrivers up to 4.9Nm

The Built-In Screw Counter Electric Screwdrivers Range (0.02-4.90Nm) offer precise & repeatable low-medium torque ranges.

Categories:All Products, Electric/Pneumatic/Manual Screwdrivers
Brand: Sumake Industrial Co
Description
Lever Start Screwdrivers
Push Start Screwdrivers
Power Supply Options

Built-In Screw Counter Electric Screwdrivers:

The Built-In Screw Counter Electric Screwdrivers feature an innovative brushless motor design (eliminates carbon dust) which results in low maintenance. With a compact LED counter built in, it is easy to operate so the user can set up the counter according to the needs of the work process. This Electric Screwdriver will effectively control the number of screw fastenings and operation quality and the automatic learn facility can also calculate the complete fastening time from start to end of fastening cycles. It is also possible to connect to a PLC if required. Other features of this Brushless Digital Counter Screwdriver include an easily adjusted external torque control, comfortable soft resin ergonomic non-slip design, high level of accuracy and a choice of either a lever or push to start model. An optional pistol grip attachment is also available to convert the screwdriver to a pistol style.

Lever Start Screwdrivers

Model
Number
Torque Range
(Nm) (+/- 3%)
Speed (Hi/Low)
(+/- 10%)
Machine Screw
(mm)
Power
Source
Standard Screwdriver
Bit Size
Standard Required
Power Supply
BD203L/CE60.02-0.341000/7001.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BD203LS1/CE60.02-0.34500/3501.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BD207L/CE60.05-0.691000/7001.4-2.6DC24/32VB Hex 6.35mmB32HL61T/C6
BD210L/CE60.10-0.981000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BD412L/CE60.15-1.181000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BD412LH/CE60.15-1.182000/14001.6-3.0DC32VB Hex 6.35mmB32HL62T/C6
BD417LH/CE60.29-1.672000/14002.3-3.5DC32VB Hex 6.35mmB32HL62T/C6
BD419L/CE60.29-1.861000/7002.3-3.5DC24/32VB Hex 6.35mmB32HL61T/C6
BD630L/CE60.98-2.941000/7502.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BD630LH/CE60.98-2.942000/15002.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BD650L/CE61.96-4.901000/7504.0-5.0DC40VB Hex 6.35mmB40HL501T/C6

Push Start Screwdrivers

Model
Number
Torque Range
(Nm) (+/- 3%)
Speed (Hi/Low)
(+/- 10%)
Machine Screw
(mm)
Power
Source
Standard Screwdriver
Bit Size
Standard Required
Power Supply
BD210P/CE60.20-0.981000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BD412P/CE60.20-1.181000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BD412PH/CE60.20-1.182000/14001.6-3.0DC24/32VB Hex 6.35mmB32HL62T/C6
BD417PH/CE60.29-1.672000/14002.3-3.5DC24/32VB Hex 6.35mmB32HL62T/C6
BD419P/CE60.29-1.861000/7002.3-3.5DC24/32VB Hex 6.35mmB32HL61T/C6
BD630P/CE60.98-2.941000/7502.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BD630PH/CE60.98-2.942000/15002.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BD650P/CE61.96-4.901000/7504.0-5.0DC40VB Hex 6.35mmB40HL501T/C6

Power Supply Options

Model
Number
Operating Vol.
(AC)
Output Vol.
(DC)
Output
Capacity
Dimensions
(mm)
Weight
(Kg)
Recommended
Models
B32HL61T/C6100-240V24V;32VLow/Hi (Max 1.8A)145 x 60 x 350.25BD203L~BD412L,
BD210P~BD412P
BD419L, BD419P
B32HL62T/C6100-240V24V;32VLow/Hi (Max 3A)200 x 80 x 660.46BD412LH, BD417LH,
BD412PH, BD417PH
B40HL501T/C6100-240V30V;40VLow/Hi (Max 5A)213 x 135 x 701.95BD630L~BD650L
BD630P~BD650P
