  • Sumake Brushless Electric Screwdrivers up to 4.90Nm

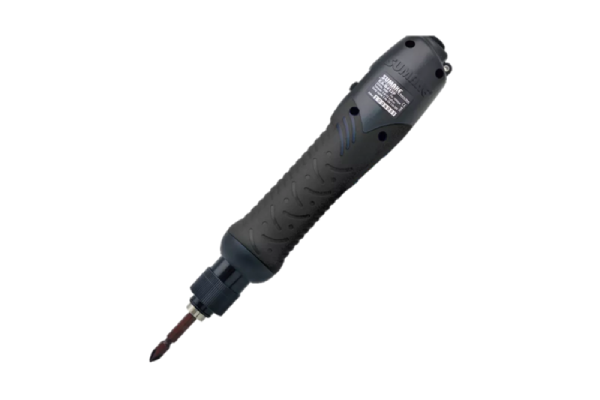

Sumake Brushless Electric Screwdrivers up to 4.90Nm

The Brushless Electric Screwdrivers Range (0.008-4.90Nm) offer precise & repeatable low-medium torque ranges.

Categories:All Products, Electric/Pneumatic/Manual Screwdrivers
Brand: Sumake Industrial Co
Description
Lever Start Screwdrivers
Push Start Screwdrivers
Power Supply Options
Accessories

Brushless Electric Screwdrivers:

High performance brushless motor design for increased durability and flexibility. This is a brand new Electric Screwdriver Range from Sumake featuring a new brushless motor. The benefits of this new motor design are to improve durability and offer a wider range of torque and r.p.m – this is because in brushless motors, communication is achieved electronically and therefore they are capable of very high speeds and torque without arcing. As brushless motors have a lower thermal resistance they are able to operate in a much wide temperature range and will achieve a higher duty cycle. No brushes also mean a reduction in maintenance and no brush contamination to the bearings or environment which also makes these Electric Screwdrivers safer when in contact with fluids due to the elimination of arcing. Lastly due to the lower thermal resistance, these Brushless Electric Screwdrivers are capable of operating in wider temperature ranges, have higher torque to inertia ratios and greater acceleration. The smaller brushless motor can do the same job as their much larger counterparts would otherwise be used for – this also results in a reduction in costs.

All Electric Brushless Screwdrivers will be ESD Safe as Standard.

Lever Start Screwdrivers

Model
Number
Torque Range
(Nm) (+/- 3%)
Speed (Hi/Low)
(+/- 10%)
Machine Screw
(mm)
Power
Source
Standard Screwdriver
Bit Size
Standard Required
Power Supply
B101L-C/CE30.008-0.151000/7001.0-1.7DC12VC 4mmB12HL30T/C3
B101LS1-C/CE30.008-0.15280/2001.0-1.7DC12VC 4mmB12HL30T/C3
B103L-C/CE30.05-0.341000/7001.0-2.3DC12VC 4mmB12HL30T/C3
B103LS1-C/CE30.05-0.34280/2001.0-2.3DC12VC 4mmB12HL30T/C3
BN203L/CE60.02-0.341000/7001.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BN203LS1/CE60.02-0.34500/3501.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BN203LS2/CE60.02-0.34370/2601.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BN203LS3/CE60.02-0.34230/1601.0-2.3DC24/32VB Hex 6.35mmB32HL61T/C6
BN207L/CE60.05-0.691000/7001.4-2.6DC24/32VB Hex 6.35mmB32HL61T/C6
BN210L/CE60.10-0.981000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BN412L/CE60.15-1.181000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BN412LH/CE60.15-1.182000/14001.6-3.0DC24/32VB Hex 6.35mmB32HL62T/C6
BN417LH/CE60.29-1.672000/14001.6-3.0DC24/32VB Hex 6.35mmB32HL62T/C6
BN419L/CE60.29-1.861000/7002.3-3.5DC24/32VB Hex 6.35mmB32HL61T/C6
BN630L/CE60.98-2.941000/7502.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BN630LH/CE60.98-2.942000/15002.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BN650L/CE61.96-4.901000/7504.0-5.0DC40VB Hex 6.35mmB40HL501T/C6

Push Start Screwdrivers

Model
Number
Torque Range
(Nm) (+/- 3%)
Speed (Hi/Low)
(+/- 10%)
Machine Screw
(mm)
Power
Source
Standard Screwdriver
Bit Size
Standard Required
Power Supply
BN210P/CE60.20-0.981000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BN412P/CE60.20-1.181000/7001.6-3.0DC24/32VB Hex 6.35mmB32HL61T/C6
BN412PH/CE60.20-1.182000/14001.6-3.0DC24/32VB Hex 6.35mmB32HL62T/C6
BN417PH/CE60.29-1.672000/14001.6-3.0DC24/32VB Hex 6.35mmB32HL62T/C6
BN419P/CE60.29-1.861000/7002.3-3.5DC24/32VB Hex 6.35mmB32HL61T/C6
BN630P/CE60.98-2.941000/7502.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BN630PH/CE60.98-2.942000/15002.6-4.0DC40VB Hex 6.35mmB40HL501T/C6
BN650P/CE61.96-4.901000/7504.0-5.0DC40VB Hex 6.35mmB40HL501T/C6

Power Supply Options

Model
Number
Operating Vol.
(AC)
Output Vol.
(DC)
Output
Capacity
Dimensions
(mm)
Weight
(Kg)
Recommended
Models
B12HL30T/C3100-240V9V;12VLow/Hi (Max 2.5A)105 x 52 x 310.14B101L~B103L
B32HL61T/C6100-240V24V;32VLow/Hi (Max 1.8A)145 x 60 x 350.25BN203L~BN412L
BN419L, BN210P,
BN412P, BN419P
B32HL62T/C6100-240V24V;32VLow/Hi (Max 3.0A)200 x 80 x 660.46BN412LH~BN417LH
BN412PH~BN417PH
B40HL501T/C6100-240V30V;40VLow/Hi (Max 5A)213 x 135 x 701.95BN630L~BN650L
BN630P~BN650P

Screw Counting Power Supply Options:

Model NumberSP-BC32HL101T/C6 (V3.0)SP-BC40HL501T/C6 (V3.0)
Suitable ScrewdriversBN203~BN419BN203~BN650
Input VoltageAC 100-240V, 50/60HzAC 100-240V, 50/60Hz
Output VoltageDC32V;24VDC40V;32V;24V
Output Watt60W220W
Count1-991-99
Count MethodCount Up & DownCount Up & Down
Work with SensorOn & OffOn & Off
GATE SensorON (2 Sensor)/OFF (1 Sensor)ON (2 Sensor)/OFF (1 Sensor)
Slow Start Time Adjustable0.1-9.9 Seconds0.1-9.9 Seconds
Slow Start Speed AdjustableLO: 100%
L1-L9 Rated Speed: 35-85%
LO: 100%
L1-L9 Rated Speed: 35-85%
Running Time Limit-LO0.0-9.9 Seconds0.0-9.9 Seconds
Running Time Limit-HI0.0-9.9 Seconds0.0-9.9 Seconds
NG AlarmOn/Off/FF/ED with LED & BuzzerOn/Off/FF/ED with LED & Buzzer
OK AlarmOn/Off/FF/ED with LED & BuzzerOn/Off/FF/ED with LED & Buzzer
Auto ZeroOn/OffOn/Off
External InputsForward/Reverse/Disable/Confirm/Sensor/ClearForward/Reverse/Disable/Confirm/Sensor/Clear
External OutputsOK/NG/OK ALLOK/NG/OK ALL
Screwdriver ControlSpeed: HI/LO : Slow StartSpeed: HI/LO : Slow Start
Outside Dimensions200 x 130 x 100mm247 x 130 x 100mm
Weight2Kgs2.4Kgs

Accessories

Accessory TypePart NumberApplicable Models
90 Degree Attachment HeadEAA-AH1BN630L & B650L
EAA-AH2BN412L & BN419L
Pistol Grip AttachmentEAA-LG4/S (ESD)BN4 Series (Lever Start Only)
EAA-PG4/S (ESD)BN4 Series (Push Start Only)
Suspension HolsterEAA-HD2BN412~BN419 (with Torque Fixing Sleeve)
BN630~BN650
EAA-HD4BN412~BN419
EAA-HD5BN203~BN210 (or with Torque Fixing Sleeve)
EAA-HD6BN630~BN650
Torque Lock CoversEAA-TL6/E (ESD)BN412~BN419
EAA-TL7/E (ESD)BN630~BN650
EAA-TL8/E (ESD)BN203L~BN210L
EAA-TL9/E (ESD)B101L~B103L
