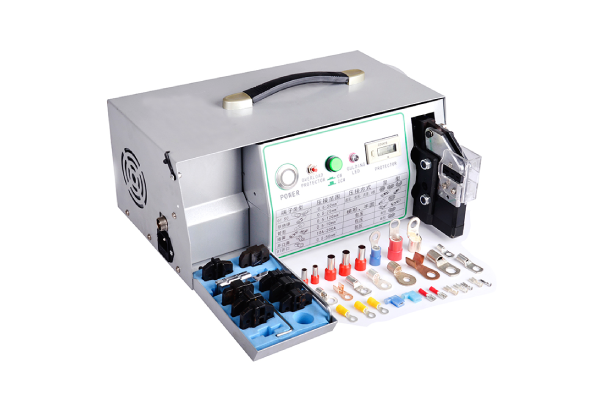

KS-T816 Electric Crimper up to 50mm² Terminals
The KS-T816 Electric Crimper is a bench top crimper suitable for a wide range of connectors up to 50mm² (Insulated Terminals).
KS-T816 Electric Crimper:
The KS-T816 Electric Crimper is capable of processing up to 50mm² Terminals as well as crimping the standard smaller range of terminals. This Crimping Machine offers excellent crimping range due to the interchangeable die sets.
This new crimping machine will accept most universal crimping die sets, this offers huge versatility and eliminates the need to buy machine specific die sets which are often costly and cannot be used in other tools.
Special crimping die sets can also be manufactured if required, please contact us.
| Weight | 20 kg |
|---|---|
| Dimensions | 360 × 207 × 150 mm |
| Max Crimping Range | Insulated Terminals up to 50mm² |
| Max Crimping Force | 3.5KN |
| Crimping Time | 1.5-1.8secs |
| Power Supply | 110/220V |
| Power Rating | 180W |
| Machine Warranty | 12 Months |

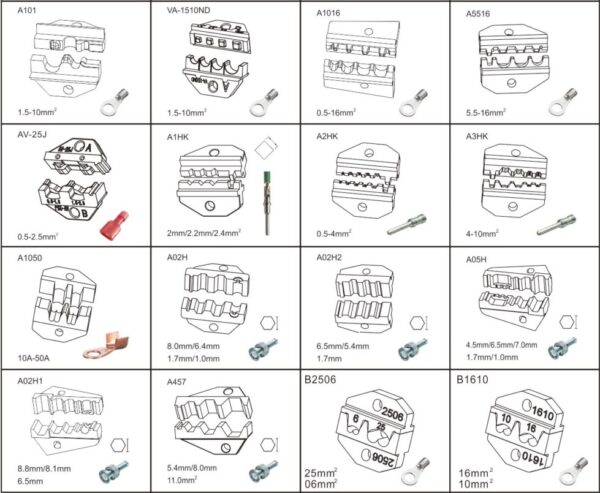

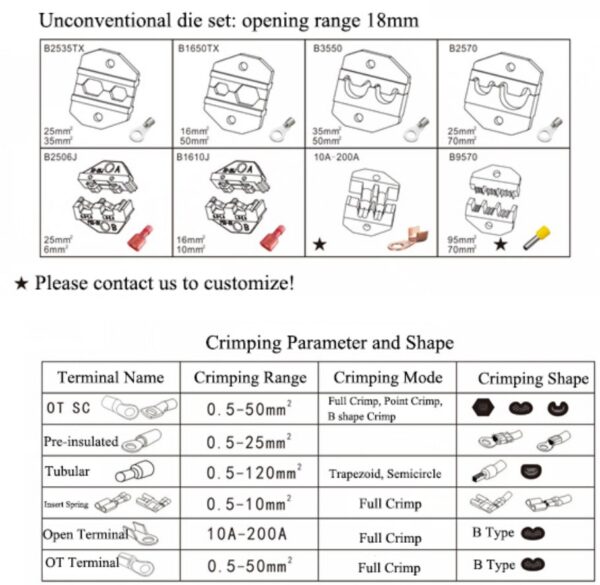

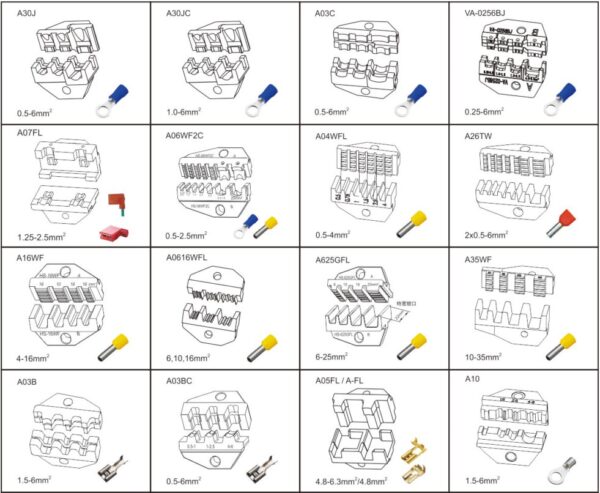

Available Die Sets
The full range of Die Sets can be found in the photos above.
