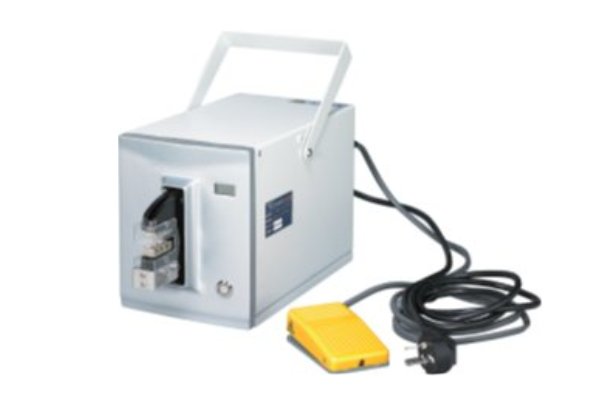

FEK-60EM Electronic Crimper:
The New FEK-60EM Electric Crimping Machine is a newer version EC-23 Electric Crimper. This bench top electric crimper is capable of crimping a wide range of crimp terminals and connectors offering superb value for money. The FEK-60EM Electric Crimper is driven by a constant speed motor which produces high efficiency and high quality on both crimping strength and crimping speed.
This new crimping machine will accept most universal crimping die sets, this offers huge versatility and eliminates the need to buy machine specific die sets which are often costly and cannot be used in other tools.

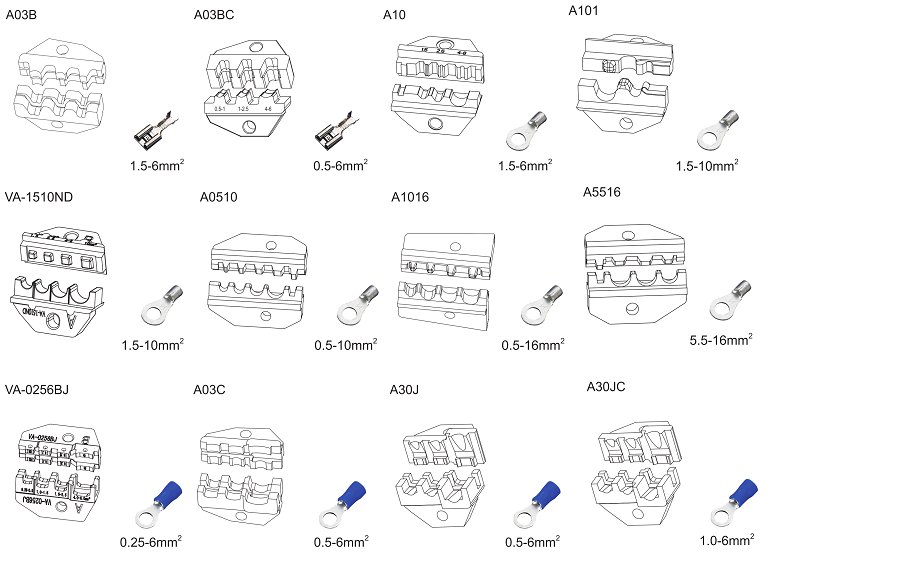

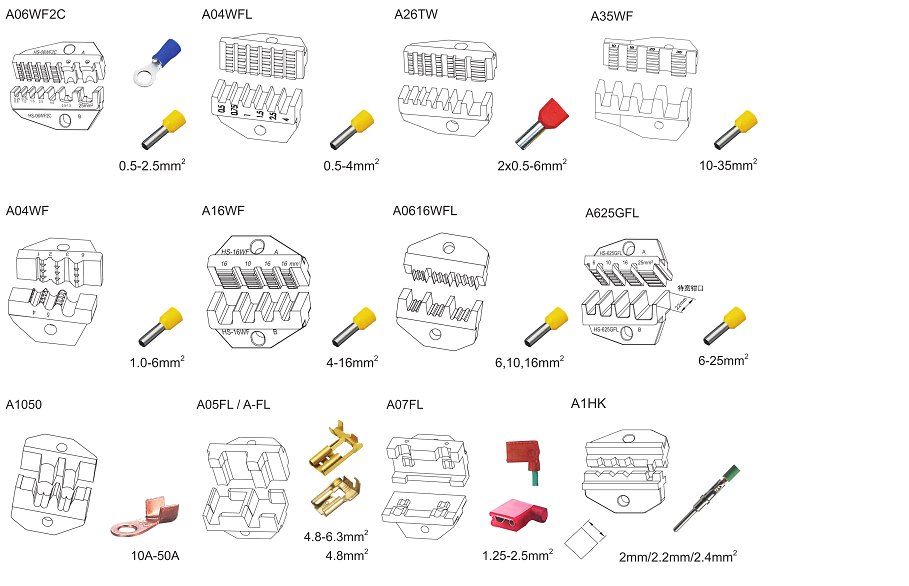

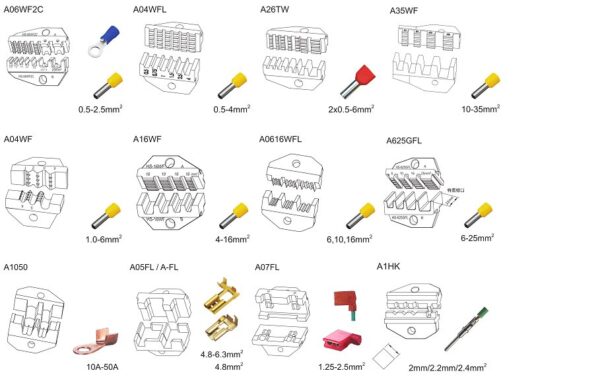

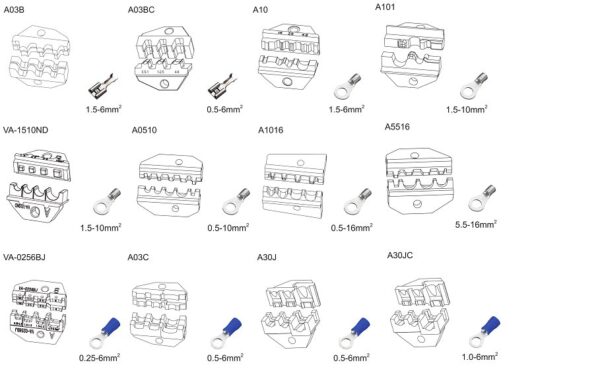

Please see the photos above for the wide range of die sets and the crimping range available for the FEK-60EM Electric Crimping Machine.
Special crimping die sets can also be manufactured if required. The FEK-60EM Electric Crimper comes equipped with a protective guard, power cord, foot switch and operators manual.
FEK-60EM Electric Crimping Machine – Technical Data:
|Maximum Crimping Range||Insulated Terminal 6.0mm²|
|Crimping Frequency||1.5 Seconds|
|Dimensions||150 x 180 x 330mm|
|Product Order Code||MC0263 – FEK-60EM Electronic Crimping Machine|
The FEK-5ND Pneumatic Crimping Machine is an economical bench top crimping machine suitable for a wide range of connectors and presents the ideal step up from manual crimping, delivering a speed 10 times quicker than can be achieved using a hand tool.
These electrically driven table top crimping machines - the CS200 and CS210, work with linear crimping technique. A multiplicity of possibilities are ensured by the extensive range of tool heads all with fast exchangeability.
The EC-23 Electric Crimper is a flexible bench top machine capable of crimping a wide range of connectors and offering superb value for money.
The EC65 Electric Crimping Machine is compact and lightweight, yet rugged enough for the factory floor. It is well suited for complex cable harness assembly application.
The MC25 Stripper/Crimper will strip PVC flexible insulated cables and crimp insulated end sleeves complying with DIN 46228 Part 4 from 0.20-2.5mm² with a set strip length of 8mm.
The AC range of Bootlace Ferrule Crimpers quickly crimp wire end sleeves without the pain or fatigue incurred from ordinary hand tools. The AC25 & AC100 are lightweight and easy to use.
The MC40 Automatic Stripping and Crimping machine is an electro-pneumatic controlled machine which will process loose wire end sleeves with plastic insulation.
