50FGN Digital Force Gauge

50FGN Digital Force Gauge:

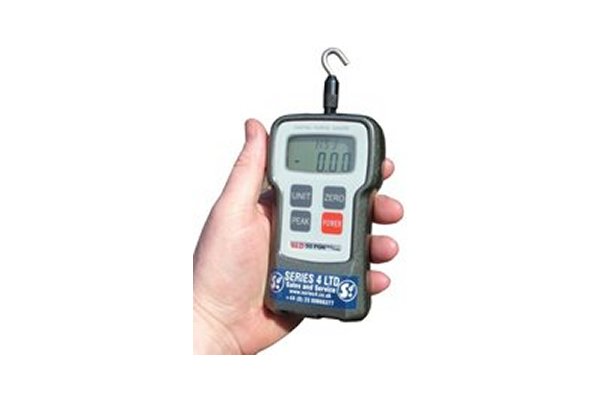

The Series 4 Push/Pull Ni-Cad Rechargeable Digital Force Gauge is available in 4 force range versions. Up to 2kg, 5kg, 20kg and 50kg. Each unit will display force measured in Kg, Newtons or Lb's which is selectable using the unit key - the display can also be turned upside down by the use of this key - where operators may need to hold the unit upside down.

Unit will track force applied or peak force can be selected by pressing the PEAK button.

Each unit comes complete with aluminium carry case, 5 measuring head attachments & extension rod, power supply for charging the unit and instruction manual and calibration certificate.

The 50FGN Digital Force Gauge is used on our Series 4 DPT50 Digital Pull Tester.

Model Range Resolution
Kgf N Lbf Kgf N Lbf
2FGN 2.00 20.00 5.000 0.001 0.01 0.001
5FGN 5.00 50.00 10.00 0.001 0.01 0.001
20FGN 20.00 200.0 50.00 0.01 0.1 0.01
50FGN 50.00 500.0 100.0 0.01 0.1 0.01

50FGN Digital Force Gauge Technical Data:
Dimensions: 135 x 75 x 32mm
Weight: 400g
Power Input: 220V, 50/60Hz (110V - Available on request)
Warranty: 12 Months
Product Order Code: MCSL-SLD-50FGN - 50FGN Digital Force Gauge
