The TROMBOI 7-10/9-14 Cable Drum Unwinder enables the user to unwind large cable drums easily and twist free with maximum cable drum weights of 2000kgs.
- General Details

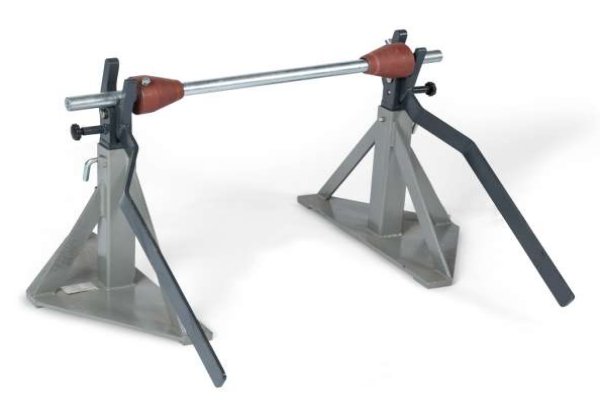

TROMBOI 7-10/9-14 Cable Drum Unwinder
The TROMBOI 7-10/9-14 Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
• Due to axle bearing, only low tensile for is required
• Also suitable for cable drums with damaged drum flange (unwinding performance will not be affected due to axle bearing)
• High stability due to large dimensioned base plates
• Easy lifting of the cable drum via lever mechanism
• Stable steel welded construction
- TROMBOI 7-10/9-14 Cable Drum Unwinder Options
Model Number TROMBOI 7-10 TROMBOI 9-14 Cable Drum OD 710-1000mm 900-1400mm Drum Axle incl. Cones 34mm OD x 840mm Long 60mm OD x 1140mm Long Max Cable Drum Weight 1000Kgs 1700Kgs Height Adjustable 420-600mm 700-830mm Dimensions (LxW) 500 x 240mm 600 x 250mm Weight (incl. Axle Cones) 32Kgs/Pair 51Kgs/Pair Part Number MCKM-TROMBOI710 MCKM-TROMBOI914
- TROMBOI 7-10/9-14 Cable Drum Unwinder Additional Axles
KM85008010 34mm 840mm 1000Kgs Yes Yes KM85008020 34mm 1140mm 700Kgs Yes Yes KM85008030 60mm 1140mm 1700Kgs No Yes KM85008040 60mm 1340mm 2000Kgs No Yes
