The TROMBOI 2003 Large Cable Drum Unwinder enables the user to unwind large cable drums easily and twist free with maximum cable drum weights of 4000kgs.
- General Details
TROMBOI 2003 Large Cable Drum Unwinder

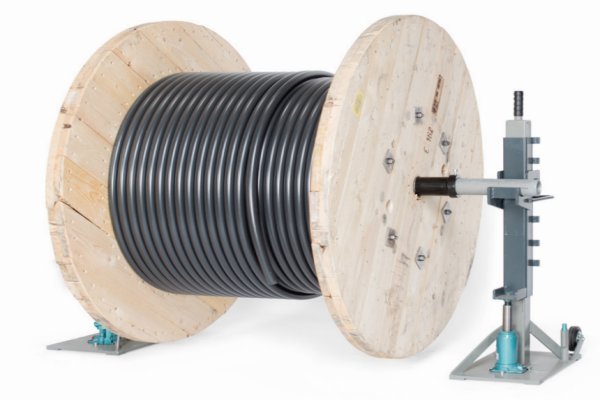

The TROMBOI 2003 Large Cable Drum Unwinder enables the user to unwind heavy cable drums easily and twist free at the place of processing. This heavy duty cable unwinder is suitable for cable drums made from wood, steel, plastic and more. This could also be used on the production line for feeding into an Automatic Cutting or Cut & Strip Machine.
• Suitable for heavy cable drums up to 4000Kgs
• Due to axle bearing, only low tensile for is required
• Also suitable for cable drums with damaged drum flange (unwinding performance will not be affected due to axle bearing)
• Easy lifting of the cable drum via hand operated hydraulic pump
• Lowering of the cable drum via vent screw
• Stable steel welded construction
- TROMBOI 2003 Large Cable Drum Unwinder Specifications
Model Number TROMBOI 2003 Cable Drum OD 900-2000mm Drum Axle with Adjustment Ring 76mm OD x 1700mm Long Max Drum Weight 4000Kgs Dimensions (LxWxH) 550 x 300 x 1520mm Weight (incl. Axle & Cones) 132Kgs/Pair Part Number MCKM-TROMBOI2003
- TROMBOI 2003 Optional Extras Drum Axles
Part Number Drum Axle OD Drum Axle Length Max Loading Weight KM85008020 34mm 1140mm incl. cones 700Kgs KM85008030 60mm 1140mm incl. cones 1700Kgs KM85008040 60mm 1340mm incl. cones 2000Kgs
