The Model TP/R-PR is a very versatile machine for cutting and forming taped radial components. Foot pedal operation which controls the down stroke of the cylinder that moves the upper die, which cuts and forms the component leads.
- General Details

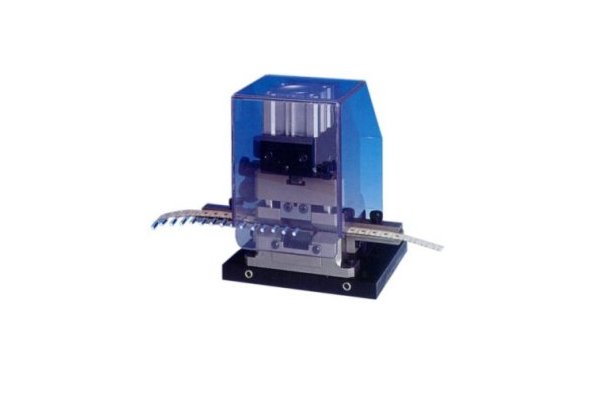

TP/R-PR Taped Radial Component Cut & Form Machine:
The model TP/R-PR is a very versatile machine for cutting and forming taped radial components. Foot pedal operation which controls the down stroke of the cylinder that moves the upper die, which cuts and forms the component leads. The tape is manually fed into the die, the correct position for the components is obtained by a front pin, which can be adjusted depending on the size of the components. The die assembly model SMS is equipped with a wire holder which keeps the leads firmly in place, which helps to avoid any damage to the leads.
Machine specifications for the entire range of Component Forming Machines can be found in the PDF Document.
AS1 Automatic Feeding System for TP/R-PR:
The AS1 is an automatic system which attaches to the machine which increases the production. The driving wheel moves step by step stopping the tape during the preforming operation. It can be used to adapt the two most common hole pitches and special forms by supplying Series 4 with drawings and specifications. The AS1 is an automatic system that fits only the TP/R-PR machine. This accessory allows the machine to reach higher unattended production. The driving wheels move step by step stopping the tape during the preforming operation. It can be supplied to adapt the two most common hole pitches on the component tape 12.7mm and 15.0mm.
TP/R-PR Shown with option AS1 Motorised Feeder.
- TP/R-PR Order Codes
TP/R-PR Ordering Information:
Product Order Code: MOL90.000 – TP/R-PR Taped Radial Component Cutting Machine
- AS1 Technical Data
AS1 Automatic Feed System for TP/R-PR Pneumatic Radial Component Former Technical Data:
Dimensions: 500 x 480 x 180mm
Machine Weight: 15Kgs
Product Order Codes:
MOL95.OL12 – AS1/12 Autosystem 220V for 12.7mm Pitch Tape
MOL95.OL14 – AS1/14 Autosystem 220V for 15.0mm Pitch Tape
