- General Details

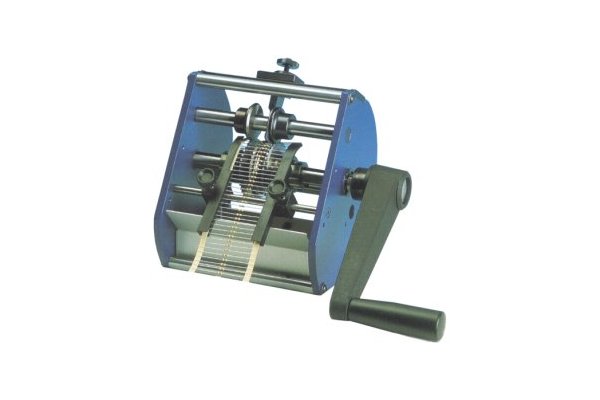

TP6V-EC Low Cost Vertical Axial Component Former:
The model TP6V-EC Low Cost Vertical Axial Component Forming Machine is designed for cutting and bending taped Axial Components for vertical mounting.
The TP6V-EC Axial Component Former is manufactured in two versions. Version one of the TP6V-EC Vertical Component Former is for components with a lead diameter from 0.5-0.8mm (0.019-0.031″). Version two of the TP6V-EC Vertical Component Forming Machine is for components with a lead diameter from 0.8-1.3mm (0.031-0.051″). The bending pitch is determined by the bending cam supplied and can be changed by replacing the cam with one of different thickness. To be specified when ordering.
Machine specifications for the entire range of Component Cut & Bend Machines can be found in the PDF Document.
- Technical Data
TP6/V-EC Low Cost Vertical Axial Component Cut & Bend Machine Technical Data:
Dimensions: 230 x 190 x 200mm
Machine Weight: 3Kgs
Gross Weight: 6Kgs
