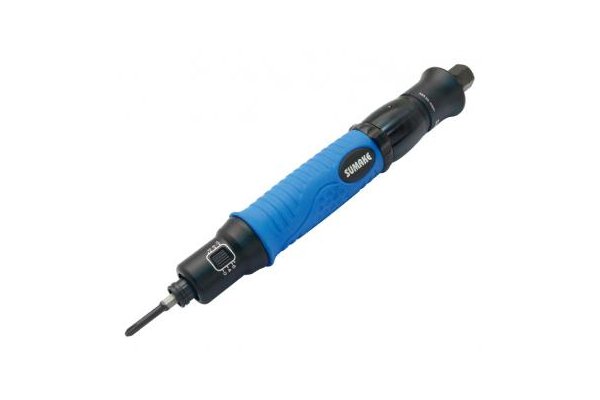

Sumake FP (Push Start) Range of Pneumatic Screwdrivers

Push Start Pneumatic Screwdriver Range. Models available with Torque Ranging between 0.05Nm and 24Nm.

  1. General Details

    Sumake FP (Push Start) Range of Pneumatic Screwdrivers:

    Introducing the *NEW* range of Push Start Pneumatic Screwdrivers from Sumake. These Air Screwdrivers have replaced the old Sumake FPF and CP Range of Pneumatic Screwdrivers.

    • An Evolutionary Upgrade of Full Auto Shut-off Air Screwdriver
    • A New experience of less noise and easy maintenance.
    • Torque Cover: To avoid the adjustment by operator and easy to mark the torque through the window.
    • External Torque Adjustment Ring Turn right to increase and left to decrease.
    • Attached 2pce high quality T.I.C.N bits which electroplated with durable material (Hv1800 2-3u) for longer operation.  single(9mm), Double(12mm)
    • One pulse with ±3% low deviation (Pat. No. 149380), MSC cross-path patent clutch system.
    • One-handed operation: Turn and change the rotary direction.
    • Speediness: Operator can change the bit rapidly by pull the bit sleeve.
    • 360° swivel Air inlet
    • Torque Rings System: SUMAKE Color Rings give you an easily visible torque marking system at a glance. Choice the color for each torque level used on your assemble line.
    • High technologic patent MCL motor with more 30% power than general type. (Pat. No. 151110)
    • Comfort: Uniquely sharped soft resin for ergonomic grip ” Top Wave” ergonomic design, best balance and easy to grip. The grip made thermophastic elastomer, the best material so far, with good touch and anti-glossy feature.
  2. Screwdriver Range
    Model NoTorque Range (Nm)Speed (RPM)Noise Level (dB)Weight (G)
    FP0020.05-0.22100068600
    FP0100.1-1.0100068600
    FP0200.3-2.0220072600
    FP0250.3-2.5180072600
    FP0350.5-3.5100072600
    FP0450.8-4.580072600
    FP0501.0-5.055072600
    FP0602.0-6.0220076880
    FP0751.2-7.5100076880
    FP1103.0-11.055076880
    FP1803.0-18.030076900
    FP2805.0-24.025076900
