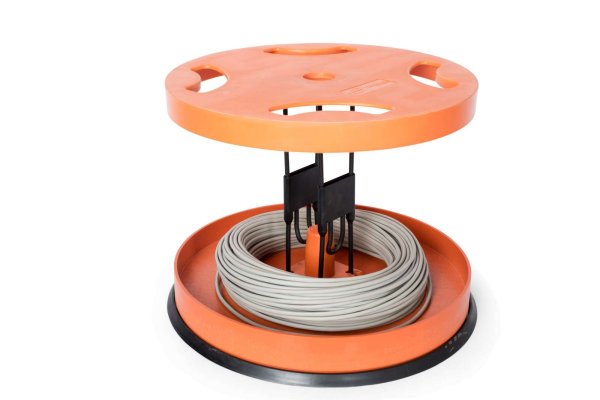

RINGO 500 Cable Unwinder for Cable Drums & Coils
The RINGO 500 Cable Unwinder has a compact design which allows for the unwinding of Cable Drums and Loose Cable Coils from one portable unwinding unit.
- General Details
RINGO 500 Cable Unwinder for Cable Drums & Coils
The RINGO 500 Cable Unwinder is suitable for unwinding Cable Drums and Coils twist-free at the place of processing. This Compact design comes as one complete unit suitable for both Cable Drums and Loose Cable Coils with a maximum load weight of 380kgs. As the RINGO 500 Cable Unwinder only weighs 7Kgs, this would make it the ideal Unwinder for portable use and perfect use on a building site etc.
Features:
• Compact Design
• Dynamic roll-off brake for a steady tensile force; The braking effect is adapted to the supported weight of the Cable Drum or Cable Coil
• Low weight
• Small dimension
• Suitable for damaged cable drums
• Maintenance-free
• Slipping-free
• Suitable for outdoor use - Technical Data
RINGO 500 Cable Unwinder for Cable Drums & Coils Technical Data:
Max Loading Weight: 380Kgs
Max Coil Outer Diameter: 500mm
Min Coil Outer Diameter: 120mm
Max Coil Height: Approx. 400mm
Min Cable Drum Bore Diameter: 50mm
Base Frame Diameter: 535mm
Flat Packed Height: Approx. 110mm
Assembled Height for Loose Coils: 415mm
Weight: 7Kgs
Product Order Code: MCKM-RINGO500
