Ringfix/Spulfix Coil & Spool Unwinder
The Ringfix/Spulfix Coil/Spool Unwinder Series are designed to pull off materials such as Cables, Wires, Tubes, Plastic Pipes from larger Coils/Spools.
- General Details
Ringfix/Spulfix Coil/Spool Unwinder
The Ringfix/Spulfix Coil/Spool Unwinder Series are designed to pull off materials such as Cables, Wires, Tubes, Plastic Pipes etc from Coils/Spools. This range of products come supplied with an Adjustable Brake Mechanism to avoid an uncontrolled material flow. Coils and Spools rest with their dead weigh centrally tensioned on the winding plates.
A separate Bouncing Protection add-on is available for the Ringfix 480/650/800 Coil Unwinders to unwind Tubing and Plastic Pips with ease.
We do also have an Economic Range available, this range does not offer any additional stands or add-ons and are suitable for smaller Coils/Spools: Economic Ringfix/Spulfix Spool & Coil Unwinder
Features:
• Twist free unwinding of the material
• Adjustable brake mechanism at the base frame to avoid an uncontrolled material flow
• Easy assembly and removal of the coils and spools
• Continuous and central tension of the coils
• Optional: Bouncing protection for unwinding tubes or plastic pipes on the Ringfix 480/650/800 Coil Unwinders - Base Frame Options
Ringfix/Spulfix Base Frame Options

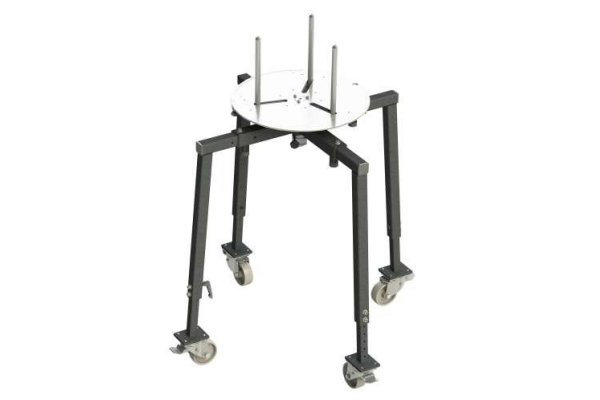

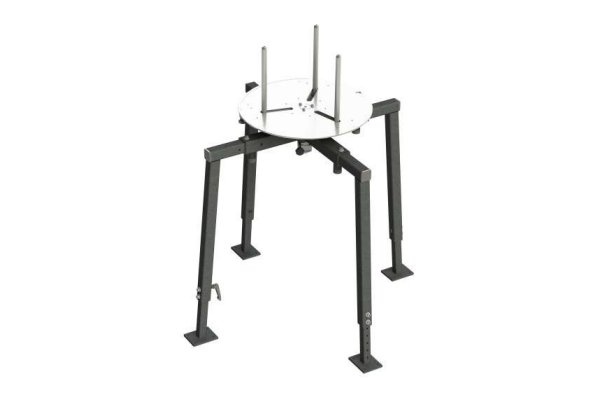

Base frames include the brake mechanism to avoid an uncontrolled material flow.Base Frame Option Ringfix Table Ringfix Mobile Ringfix Stationary Photo of Frame Unwinding Height 160mm 825-975mm 695-840mm Plate Diameter 480-800mm 480-800mm 480-800mm Dimensions (LxWxH) 520 x 520 x 102mm 1045 x 1045 x 920mm 880 x 880 x 790mm Weight 8.5Kgs 32Kgs 27Kgs Including Roller Set N/A Yes (Set of 4) N/A Part Number MCKM-RT MCKM-RM MCKM-RS - Coil Unwinders

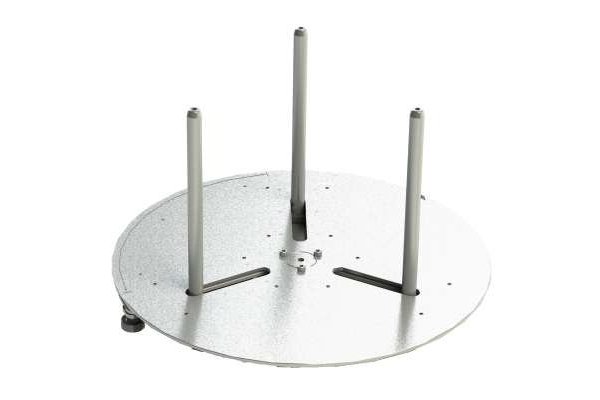

Coil Unwinding Plates
All 3 of the below Coil Unwinding Plates need to be purchased with one of the Base Frame Options.Model
NumberRingfix 480 Ringfix 650 Ringfix 800 Photo of
Unwinding PlatesCoil OD Max 470mm Max 640mm Max 790mm Plate OD 480mm 650mm 800mm Core Bolts Height 250mm 250mm 250mm Core Adjusting Range 140-320mm 180-500mm 220-660mm Max Coil Weight 20Kgs 20Kgs 20Kgs Plate Weight 15Kgs 26Kgs 38Kgs Part Number MCKM-RING480 MCKM-RING650 MCKM-RING800 - Bouncing Protection for Coil Unwinders (Ringfix 480/650/800 only)

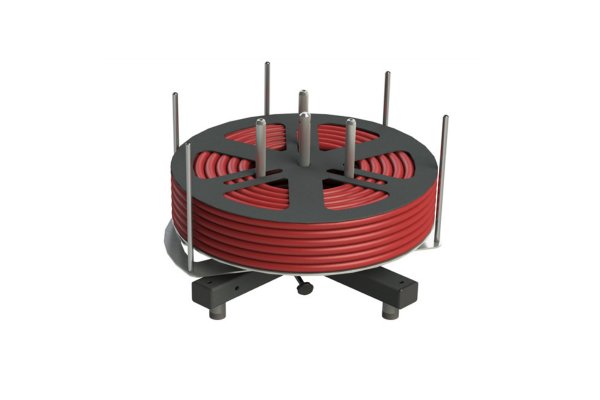

Bouncing Protection for Ringfix 480/650/800
Optional Extra - Border pins and cover plate to avoid the bounce of the coil (e.g. for tubes and plastic pipes). These can only be used with the Ringfix 480/650/800 Series Coil Unwinders.Model No for Ringfix 480 for Ringfix 650 for Ringfix 800 Photo of Ringfix with Bouncing Protection Cover Plate OD Max 480mm Max 650mm Max 800mm No of Border Pins 5 5 5 Border Pins Height 305mm 305mm 305mm Max Coil Height 230mm 230mm 230mm Weight 7.3Kgs 10Kgs 12.5Kgs Cover Plate Weight 2.7Kgs 3.8Kgs 4.8Kgs Part Number MCKM-BP480 MCKM-BP650 MCKM-BP800 - Spool Unwinders

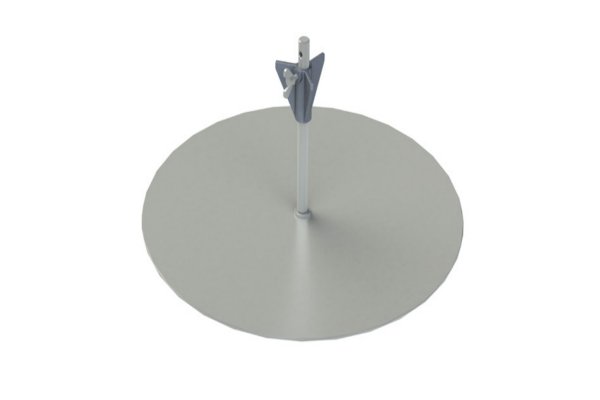

Spool Unwinding Plate
The below Spool Unwinding Plate needs to be purchased with one of the Base Frame Options.Model No Spulfix 480 Photo Max Spool OD 470mm Max Spool Width 150mm Plate OD 480mm Core Bolt Dimensions 16mm OD x 200mm Long Centering Cone for Bore OD 25-80mm Max Spool Weight 20Kgs Plate Weight 5.5Kgs Part Number MCKM-SPUL480
