The Pull Winder model PW-10 is an air operated manual coil winder for toroids. The machine reduces winding times and operator fatigue. It is fitted with a automatic turns counter.
- General Details

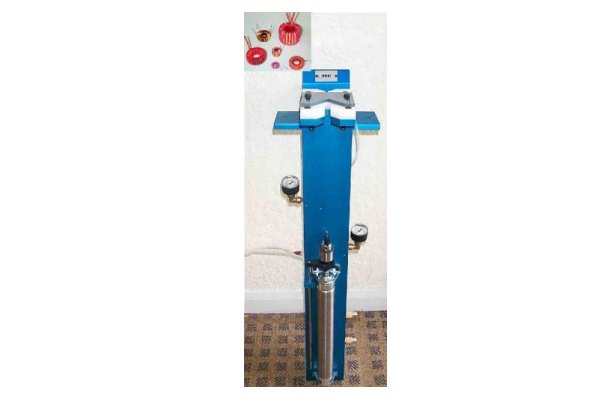

PW10 Pneumatic Evo Coil Winder:
The Pull Winder model PW-10 is an air operated manual coil winder for toroids. The machine reduces winding times and operator fatigue. It is fitted with a automatic turns counter. The continuous tension ensures tightly wound coils and highly polished winding needles eliminate damage to insulation.
The PW-10 incorporates several unique safety features. It is simple to operate with a variable speed stroke movement. Cores from 8mm to 160mm in diameter can be wound by the PW-10 and it is suitable for single wires up to 3mm diameter and bifilar up to 1.6mm diameter. The machine fits to any standard workbench and has an air requirement of 4-6 Bar.
Manufactured in the UK.
- Large Core Rotator (LCR80)

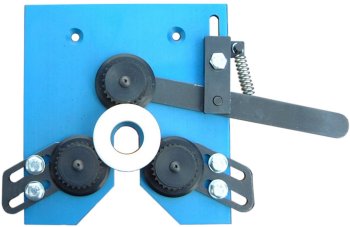

Large Core Rotator – LCR 80
Is designed to fit on the PW-10 Pull Winder to assist in winding cores. The core is loaded into the rotator and is indexed manually thus allowing the operator to have a free hand. The core is retained by three rollers, the rear of which is sprung loaded. The quick release handle is mounted on a slide which allows the pressure on the core to be varied. This table is easily fitted to any PW-10 toroidal pull winder.
- Winding Hooks
To use the Delrin Hooks on the PW-10 Pull Winder you will require a Small Steel Rod (UHDR1) for hooks UHD1 to UHD3 and a Large Steel Rod (UHDR2) for hooks UHD4-UHD6.
Delrin Hooks (CWG) Thread
A 4mm 0.156" 8-32 UHD1 A 5mm 3/16" 8-32 UHD2 A 6.5mm 1/4" 8-32 UHD3 A 8mm 5/16" 10-32 UHD4 A 9.5mm 3/8" 10-32 UHD5 A 12mm 1/2" 10-32 UHD6
Polished Stainless Steel Hooks (UK2000) Hook No Part Number Wire Size 1 SS1 0.5-1.6mm 2 SS2 1.25-2.0mm 2.5 SS2.5 1.25-2.2mm 3 SS3 2.0-2.5mm 4 SS4 2.25-3.0mm
- Technical Data
PW10 Pull Winder Technical Data:
Warranty: 12 Months
Product Order Code:
MUK2000 – PW10 Pneumatic Toroid Pull Winder
LCR80 Large Core Rotator Technical Data:
Core Size O.D: 15-80mm
Min Core Size I.D: 3mm
Core Size Height: 50mm Max (Larger on request), 0.1-2.5mm Diameter
Product Order Code:
MUK2100 – LCR Large Core Rotator
