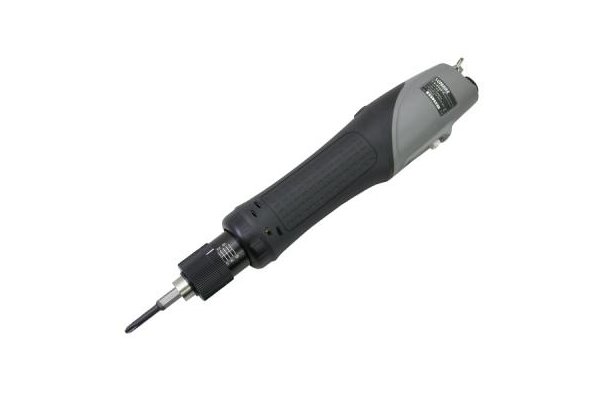

*Discontinued* Push Start Budget Electric Screwdriver

Push Start External Brush Electric Screwdriver Range. Models available with Torque Ranging between 0.2Nm and 4.41Nm.

  1. General Details

    Push Start Standard Ext Brush Electric Screwdriver:

    WE NOW HAVE A MOQ OF 8PCS ON ALL MODELS OF THE EXT. BRUSH SCREWDRIVER RANGE. The only exception to this MOQ will be if we have any available from stock at the time of quoting.

    If you have one of the Old Style 2000-9000 Series Sumake Electric Screwdrivers, these have now been discontinued, please see the Required Replacements Tab above.

    Please note: All Electric Ext Brush Screwdrivers will be ESD Safe as Standard. We do have some stock available with the original standard casings and these can possibly be supplied by request, please contact us for more information.

    High performance DC motor design for increased durability and flexibility. This is a brand new Sumake Electric Screwdriver range featuring a new DC motor. The benefits of this not motor design are to improve durability and offer a wider range of torque and r.p.m – this is due to the high quality extra strong magnet, low electric current and stable rotation. This is a low voltage, auto shut-off driver with a power supply especially designed for long use and with a high/low speed setting. Externally replaceable brushes offer greater ease of maintenance and high durability. This is a highly stable screwdriver, not influenced by fluctuations in voltage and with a precise torque control, externally adjusted. It has a cushioned grip for exceptional manoeuverability and operator comfort. We are shortly introducing a further heavy duty pistol grip version capable of torque up to 153 kgf-cm (15Nm).

    An optional power supply unit is also available with screw counting function. This power supply has to be ordered with a 7 pin Electric Screwdriver. Contact us for more information.

  2. Screwdriver Range
    Model NoTorque Range (Nm)Speed (Hi/Low)Machine Screw (mm)Power SourceScrewdriver Bit Size
    408PH0.20-0.7820001.6-3.0DC32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    412P0.20-1.181000/7001.6-3.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    416P0.29-1.571000/7002.3-3.5DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    610PH0.20-0.9820002.0-3.0DC32VA Hex 5mm
    B Hex 6.35mm
    D Ø5mm
    618P0.49-1.771000/7002.0-3.5DC24/32VA Hex 5mm
    B Hex 6.35mm
    D Ø5mm
    624P0.69-2.35750/5202.6-4.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    D Ø5mm
    630P0.78-2.94530/3503.0-5.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    D Ø5mm
    712PH0.49-1.1820002.3-3.5DC32VA Hex 5mm
    B Hex 6.35mm
    722P0.59-2.161000/7002.6-4.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    730P0.98-2.94750/5203.0-5.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    730PH0.98-2.9410003.0-5.0DC32VA Hex 5mm
    B Hex 6.35mm
    745P1.47-4.41530/3504.0-6.0DC24/32VA Hex 5mm
    B Hex 6.35mm
  3. Accessories

    (TFR = Torque Fixing Ring)

    ImageAccessory TypeApplicable ModelsAccessory Part NoLever/Push Start
    90 Degree Attachment Head618L, 624L, 630L,
    722L, 730L, 745L
    EAA-AH1Lever Start Only
    90 Degree Attachment Head412L, 416LEAA-AH2Lever Start Only
    Suspension Holster610-645 (With TFR)
    712-745 (With TFR)
    EAA-HD1Lever & Push Start
    Suspension Holster610-630
    408-416 (With TFR)
    EAA-HD2Lever & Push Start
    Suspension Holster203-210 (With TFR)
    EAA-HD3Lever & Push Start
    Suspension Holster203-416EAA-HD4Lever & Push Start
    Torque Locking/Fixing Ring712-748EAA-TL1Lever & Push Start
    Torque Locking/Fixing Ring (ESD Models)712/E-748/EEAA-TL1/ELever & Push Start
    Torque Locking/Fixing Ring610-630EAA-TL2Lever & Push Start
    Torque Locking/Fixing Ring (ESD Models)610/E-630/EEAA-TL2/ELever & Push Start
    Torque Locking/Fixing Ring203L-210LEAA-TL4Lever Start Only
    Torque Locking/Fixing Ring (ESD Models)203L/E-210L/EEAA-TL4/ELever Start Only
    Screwdriver to PSU
    Connector Lead
    (6 Pin Configuration -
    5 around the outside
    and 1 in the middle)
    203-745EPAA50001NLever & Push Start

  4. Required Replacement Screwdrivers
    Discontinued Sumake
    Torque Range
    -New Replacement
    Torque Range
    Required Power
    EA-45000.147-0.98720-EA-412L or EA-412P0.10-1.18700/1000SP-32HL60T/C
    EA-4500S0.147-0.981000-EA-412L or EA-412P0.10-1.18700/1000SP-32HL60T/C
    EA-65000.392-1.7641000-EA-618L or EA-618P0.49-1.77700/1000SP-32HL60T/C
    EA-70000.686-1.96700-EA-624L or EA-624P0.69-2.35520/750SP-32HL60T/C
    EA-7500S0.686-2.921000-EA-630L or EA-630P0.78-2.94350/530SP-32HL60T/C
    EA-80001.176-2.92550-EA-730L or EA-730P0.98-2.94520/750SP-32HL60T/C
    EA-85001.176-3.92700-EA-745L or EA-745P1.47-4.41350/530SP-32HL60T/C
    EA-90001.96-4.90500-EA-745L or EA-745P1.47-4.41350/530SP-32HL60T/C
    EA-45000.147-0.98720-EA-B412L or EA-B412P0.15-1.18700/1000SP-B32HL61T/C6
    EA-4500S0.147-0.981000-EA-B412L or EA-B412P0.15-1.18700/1000SP-B32HL61T/C6
    EA-65000.392-1.7641000-EA-B419L or EA-B419P0.29-1.86700/1000SP-B32HL61T/C6
    EA-70000.686-1.96700-EA-B419L or EA-B419P0.29-1.86700/1000SP-B32HL61T/C6
    EA-75000.686-2.921000-EA-B630L or EA-B630P0.98-2.94750/1000SP-B40HL501T/C6P
    EA-80001.176-2.92550-EA-B630L or EA-B630P0.98-2.94750/1000SP-B40HL501T/C6P
    EA-85001.176-3.92700-EA-B650L or EA-B650P1.96-4.90750/1000SP-B40HL501T/C6P
    EA-90001.96-4.90500-EA-B650L or EA-B650P1.96-4.90750/1000SP-B40HL501T/C6P
