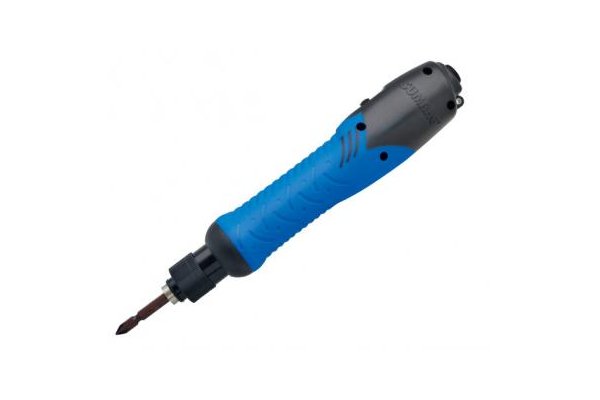

Push Start Standard Brushless Electric Screwdrivers

Push Start Standard Brushless Electric Screwdriver Range. Models available with Torque Ranging between 0.2Nm and 12Nm.

  1. General Details

    Push Start Standard Brushless Electric Screwdrivers:

    If you have one of the Old Style 2000-9000 Series Sumake Electric Screwdrivers, these have now been discontinued, please see the Required Replacements Tab above.

    Please note: All Electric Brushless Screwdrivers will be ESD Safe as Standard. We do have some stock available with the original standard casings and these can possibly be supplied by request, please contact us for more information.

    High performance brushless motor design for increased durability and flexibility. This is a brand new Electric Screwdriver Range from Sumake featuring a new brushless motor. The benefits of this new motor design are to improve durability and offer a wider range of torque and r.p.m – this is because in brushless motors, communication is achieved electronically and therefore they are capable of very high speeds and torque without arcing. As brushless motors have a lower thermal resistance they are able to operate in a much wide temperatrure range and will achieve a higher duty cycle. No brushes also mean a reduction in maintenance and no brush contamination to the bearings or environment which also makes these Electric Screwdrivers safer when in contact with fluids due to the elimination of arcing. Lastly due to the lower thermal resistance, these Brushless Electric Screwdrivers are capable of operating in wider temperature ranges, have higher torque to inertia ratios and greater acceleration. The smaller brushless motor can do the same job as their much larger counterparts would otherwise be used for – this also results in a reduction in costs.

    Please note that some models supplied may start with BN*** instead of the B*** listed below, this is due to the manufacturer changing the part numbers.

  2. Screwdriver Range
    Model NoTorque Range (Nm)Speed (Hi/Low)Machine Screw (mm)Power SourceScrewdriver Bit Size
    B412P60.20-1.181000/7001.6-3.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    B412PH60.20-1.182000/14001.6-3.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    B417PH60.29-1.672000/14001.6-3.0DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    B419P60.29-1.861000/7002.3-3.5DC24/32VA Hex 5mm
    B Hex 6.35mm
    C Ø4mm
    D Ø5mm
    B630P/C60.98-2.941000/7002.6-4.0DC40VA Hex 5mm
    B Hex 6.35mm
    B630PH/C60.98-2.942000/13002.6-4.0DC40VA Hex 5mm
    B Hex 6.35mm
    B650P/C61.96-4.901000/7004.0-5.0DC40VB Hex 6.35mm
    B760P/C62.0-6.02200/16504.0-5.0DC30/40VB Hex 6.35mm
    W 3/8" Square
    B790P/C63.0-9.01000/750<6.0DC30/40VB Hex 6.35mm
    W 3/8" Square
    B7120P/C66.0-12.0880/660<8.0DC30/40VB Hex 6.35mm
    W 3/8" Square
  3. Accessories

    (TFR = Torque Fixing Ring)

    ImageAccessory TypeApplicable ModelsAccessory Part NoLever/Push Start
    90 Degree Attachment HeadB630L, B650LEAA-AH1Lever Start Only
    90 Degree Attachment HeadB412L, B419LEAA-AH2Lever Start Only
    Pistol Grip AttachmentB630L-B650LEAA-LG3Lever Start Only
    Pistol Grip Attachment
    (/S for ESD Models)
    B630L-B650LEAA-LG3/SLever Start Only
    Pistol Grip AttachmentB630P-B650PEAA-PG3Push Start Only
    Pistol Grip Attachment
    (/S for ESD Models)
    B630P-B650PEAA-PG3/SPush Start Only
    Suspension Holster
    (With TFR)
    B412-B419EAA-HD2Lever & Push Start
    Suspension HolsterB630-B650EAA-HD2Lever & Push Start
    Suspension HolsterB412-B419EAA-HD4Lever & Push Start
    Suspension Holster
    (or With TFR)
    B203-B210EAA-HD5Lever & Push Start
    Torque Fixing/Locking RingB412-B419EAA-TL6
    (/E for ESD Models)
    Lever & Push Start
    Torque Fixing/Locking RingB630-B650EAA-TL7
    (/E for ESD Models)
    Lever & Push Start
    Torque Fixing/Locking RingB203L-B210LEAA-TL8
    (/E for ESD Models)
    Lever Start Only
    Torque Fixing/Locking RingB101L-B103LEAA-TL9
    (/E for ESD Models)
    Lever Start Only
    Screwdriver to PSU
    Connector Lead
    (6 Pin Configuration -
    6 pins around the outside)
    B203-B650EPAA5001-56NLever & Push Start

  4. Power Supply Options

    Standard Power Supply Unit Supplied with each Screwdriver Model:

    Model NoOperating Vol.
    (AC)
    Output Vol.
    (DC)
    Output CapacityDimensions
    (mm)
    Recommended
    Models
    B12HL30T/C3100-240V9V;12VLow/Hi
    Max 2.5A
    105 x 52 x 31B101-B103
    B32HL61T6100-240V24V;32VLow/Hi
    Max 1.8A
    145 x 60 x 35B203L-B412L
    B419L, B412P,
    B419P
    B32HL62T6
    (High Speed Models)
    100-240V24V;32VLow/Hi
    Max 1.8A
    200 x 80 x 66B412LH-B417LH
    B412PH-B417PH
    B40HL501T/C6
    (Inc High Speed
    Models)
    100-240V30V;40VLow/Hi
    5.5A
    213 x 135 x 70B630L-B650L
    B630P-B650P
    B40HL801T/C6110-240V30V;40VLow/Hi
    5.5A
    213 x 135 x 70B760L-B7120L
    B760P-B7120P

  5. Required Replacement Screwdrivers
    Discontinued Sumake
    Screwdrivers
    Torque Range
    (Nm)
    Speed
    (Rpm)
    -New Replacement
    Screwdriver
    Torque Range
    (Nm)
    Speed
    (Rpm)
    Required Power
    Supply
    EXT BRUSH SCREWDRIVER SERIES
    EA-20000.0392-0.147720-EA-203L0.02-0.34700/1000SP-32HL60T/C
    EA-2000S0.0392-0.1471000-EA-203L0.02-0.34700/1000SP-32HL60T/C
    EA-40000.098-0.588720-EA-207L0.05-0.69700/1000SP-32HL60T/C
    EA-4000S0.098-0.5881000-EA-207L0.05-0.69700/1000SP-32HL60T/C
    EA-45000.147-0.98720-EA-412L or EA-412P0.10-1.18700/1000SP-32HL60T/C
    EA-4500S0.147-0.981000-EA-412L or EA-412P0.10-1.18700/1000SP-32HL60T/C
    EA-65000.392-1.7641000-EA-618L or EA-618P0.49-1.77700/1000SP-32HL60T/C
    EA-70000.686-1.96700-EA-624L or EA-624P0.69-2.35520/750SP-32HL60T/C
    EA-7500S0.686-2.921000-EA-630L or EA-630P0.78-2.94350/530SP-32HL60T/C
    EA-80001.176-2.92550-EA-730L or EA-730P0.98-2.94520/750SP-32HL60T/C
    EA-85001.176-3.92700-EA-745L or EA-745P1.47-4.41350/530SP-32HL60T/C
    EA-90001.96-4.90500-EA-745L or EA-745P1.47-4.41350/530SP-32HL60T/C
    BRUSHLESS SCREWDRIVER SERIES
    EA-20000.0392-0.147720-EA-B203L0.02-0.34700/1000SP-B32HL61T/C6
    EA-2000S0.0392-0.1471000-EA-B203L0.02-0.34700/1000SP-B32HL61T/C6
    EA-40000.098-0.588720-EA-207L0.05-0.69700/1000SP-B32HL61T/C6
    EA-4000S0.098-0.5881000-EA-B207L0.05-0.69700/1000SP-B32HL61T/C6
    EA-45000.147-0.98720-EA-B412L or EA-B412P0.15-1.18700/1000SP-B32HL61T/C6
    EA-4500S0.147-0.981000-EA-B412L or EA-B412P0.15-1.18700/1000SP-B32HL61T/C6
    EA-65000.392-1.7641000-EA-B419L or EA-B419P0.29-1.86700/1000SP-B32HL61T/C6
    EA-70000.686-1.96700-EA-B419L or EA-B419P0.29-1.86700/1000SP-B32HL61T/C6
    EA-75000.686-2.921000-EA-B630L or EA-B630P0.98-2.94750/1000SP-B40HL501T/C6P
    EA-80001.176-2.92550-EA-B630L or EA-B630P0.98-2.94750/1000SP-B40HL501T/C6P
    EA-85001.176-3.92700-EA-B650L or EA-B650P1.96-4.90750/1000SP-B40HL501T/C6P
    EA-90001.96-4.90500-EA-B650L or EA-B650P1.96-4.90750/1000SP-B40HL501T/C6P
