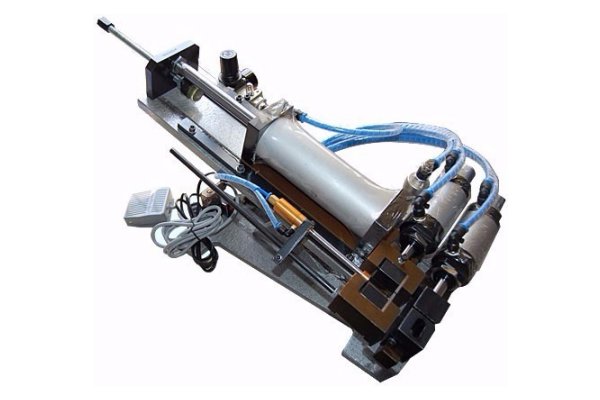

KS-W40* Series of Pneumatic Cable Stripping Machines
The New KS-W40* Series of Pneumatic Cable Stripping Machines are especially designed for heavy duty processing of large cables up to 50mm O.D.
- General Details
KS-W40* Series of Pneumatic Cable Stripping Machines:
The New KS-W40* Series of Pneumatic Cable Stripping Machines are especially designed for heavy duty processing of large cables up to 50mm O.D. Depending on the model, stripping lengths can reach 700mm.
Please note, we will need your cable size and possibly samples of the cable as the blades are manufactured to suit the cable size.
- Technical Data
Model
NumberWire Size
(mm)Stripping Length
(mm)Force
(Kgs)Net Weight
(Kgs)Dimensions
(mm)W401 1-5 3-50 37 20 400 x 300 x 270 W402 1-10 3-100 115 25 480 x 330 x 280 W403 1-15 3-150 196 35 600 x 420 x 360 W404 1-15 3-330 196 65 1100 x 550 x 450 W405 1-20 3-400 196 80 1200 x 550 x 450 W406 1-20 3-500 196 80 1200 x 550 x 450 W407 1-30 3-150 300 50 800 x 620 x 550 W408 1-30 3-300 300 80 800 x 620 x 550 W409 1-30 3-700 300 150 1800 x 660 x 580 W410 1-50 3-200 500 102 900 x 700 x 600 W411 1-30 3-500 400 110 1800 x 660 x 580 W412 1-50 3-600 500 130 1800 x 660 x 580 - Product Video
