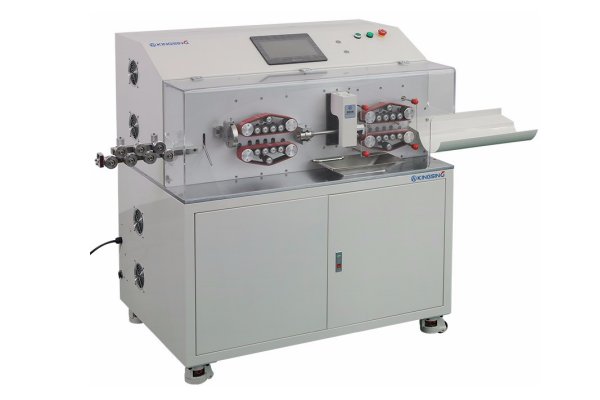

KS-W104 Advanced Automatic Wire Cut & Strip Machine
The KS-W104 Automatic Cut & Strip Machine is capable of processing up to approx 23mm OD with stripping lengths up to 200mm on each end of the wire.
- General Details
KS-W104 Advanced Wire Cut & Strip Machine:
Introducing the brand new KS-W104 Automatic Cut & Strip Machine. This new model offers a wide production range which is capable of processing up to approx 23mm O.D cables with stripping lengths up to 200mm. This new Cut & Strip Machine adopts a PLC Control System and Colour Touch Screen to provide a simple and enjoyable operation. The KS-W104 utilizes a belt feeding system which is designed to avoid marking on the cables.
Features:
Fast Installation and Simple Operation.
PLC Control & Servo Motor Driven (Allows ultimate processing effect).
Robust Design (Allows heavy duty wire loading and processing).
Durable Tungsten Steel Blades - Technical Data
KS-W104 Advanced Automatic Cut & Strip Machine Technical Data:
Max Wire Diameter: Approx 23mm O.D.
Max Wire Gauge: 120mm²
Cutting Lengths: 240-100000mm
Max Stripping Lengths: 200mm (Both Ends)
Stripping Accuracy: +/- 0.002mm x Length
Feeding Speed: 0.8m Per Second
Drive Mode: 8 Wheel Drive (with Drive Belts)
Display: LCD Display
Power Supply: AC220V/50Hz (AC110V/60Hz – Available on request)
Net Weight: 240Kgs
Dimensions: 1200 x 800 x 1300mmProduct Order Code:
MCKS-W104 – KS-W104 Advanced Automatic Wire Cut & Strip Machine - Product Video
