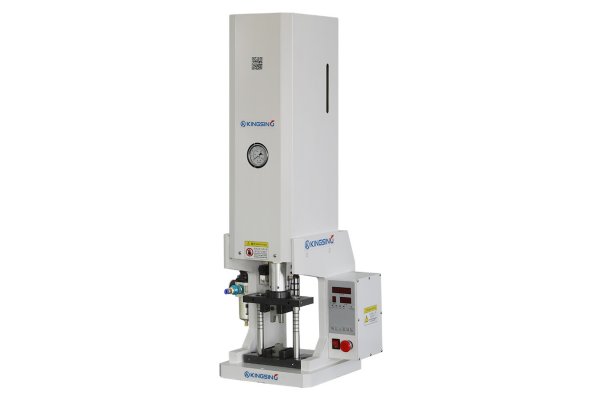

KS-T526 10T Terminal Crimping Machine

The KS-T526 Pneumatic & Hydraulic Hybrid Terminal Crimping Machine is capable of processing up to 150mm² Wire Sizes with a Crimping Force of 10T.

  1. General Details

    KS-T526 10T Terminal Crimping Machine:

    Introducing the brand new KS-T526 10T Pneumatic & Hydraulic Hybrid Drive heavy-duty Terminal Crimping Machine which is designed for crimping large gauge wires up to 150mm².

    This new Terminal Crimper combines the advantages of Pneumatic and Hydraulic Pressure which greatly improves the crimping speed compared to a traditional Hydraulic Termination Machine. The KS-T526 Terminal Crimper does not require an additional hydraulic station or motor.

    The pressure can be finely adjusted by the regulating valve, it has advantages of simple operation, balanced work, large output, low energy consumption, no pollution and small occupied area.

    The Crimp Die adopts a quick clamping design and can be equipped with a variety of crimping die sets.

  2. Technical Data

    KS-T526 10T Terminal Crimping Machine Technical Data:
    Available Wire Gauge: 10-150mm² (Smaller Crimp Sizes can be customised on request)
    Crimping Force: 10T
    Crimping Stroke: 40mm (Hydraulic Stroke: 10mm)
    Power Supply: 220V 50/60Hz
    Required Air Pressure: 0.5-0.7Mpa
    Net Weight: 150Kgs
    Dimensions: 520 x 600 x 1050mm

    Product Order Code:
    MCKS-T526 10T Terminal Crimping Machine
