MESSROL 670/1000 Manual Spool & Coil Rewinding System
The MESSROL 670/1000 Measure & Spool/Coil Rewinding System is suitable for winding cables, wires, tubing etc. from Larger Cable Drums
- General Details
MESSROL 670/1000 Manual Spool & Coil Rewinding System
The MESSROL 670/1000 Measure & Spool/Coil Rewinding System is suitable for winding cables, wires, tubing etc. from Larger Cable Drums into smaller Coils or onto smaller Spools while measuring the material to the required lengths.
Features:
• Modular system
• Easy winding while length measuring at the same time
• Movable traversing slide for a smooth winding pattern
• Easy assembly and removal of the coils or spools
• Optional cutting device

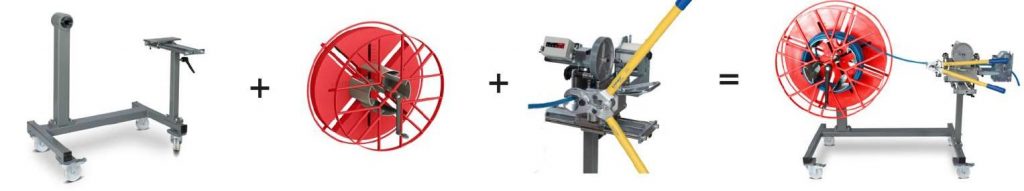

• Optimal combination/supplement with unwinder or cable drum rackPossible Combination:
• MESSROL 1000 Basic Frame
• 800SL Adjustable Cable Coiler
• MESSBOI 40BAE Measuring Device with Inlet Roller Cage and MATIS 25M Cutting Device
- Complete Device & Base Frame Options
MESSROL 670/1000 Complete Devices
Model Number MESSROL 670 - Complete with Measuring Device MESSROL 1000 - Complete with Measuring & Cutting Device MESSROL 1000RM - Complete without Measuring & Cutting Device Photo
Complete device consisting of the following: Base Frame Part Number KM86180439 KM85100439 KM86180440 Measuring Device &
Part NumberMESSBOI 25
MCKM-MES25MESSBOI 40BAE
MCKM-MES40BAEN/A Inlet/Outlet Roller Cage Unit Inlet & Outlet
KM85101001Inlet
KM85100189N/A Cutting Device N/A MATIS 25
KM85100163N/A Coiling Head RAPID 600SP
KM85100091RAPID 600SP
KM85100091RAPID 850ST
KM85100466Dimensions (LxWxH) 880 x 680 x 1210mm 1250 x 710 x 910mm 1200 x 710 x 1135mm Weight 52Kgs 80Kgs 67Kgs Part Number MCKM-MESSROL670 MCKM-MESSROL1000 MCKM-MESSROL1000RM
MESSROL 670/1000 Base Frame Options
Model Number MESSROL 670 MESSROL 1000 MESSROL 1000RM Photo
Max Coil/Spool OD 670mm 1000mm 1000mm Axle Holder OD 30mm 30mm 30mm Traversing Width 250mm 250mm 250mm Dimensions (LxWxH) 860 x 680 x 910mm 1200 x 710 x 910mm 1200 x 710 x 910mm Weight 41Kgs 51Kgs 35Kgs Part Number KM86180439 KM85100439 KM86180440 - Measuring Devices & Roller Cages
MESSROL 670/1000 Measuring Options

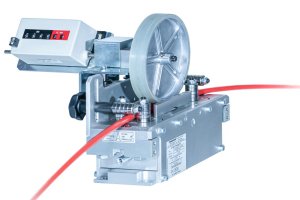

Model Number MESSBOI 25 MESSBOI 40BAE Photo

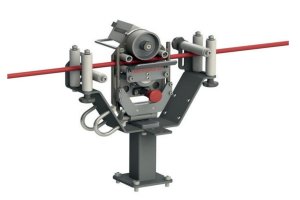

Wire/Cable OD 2-25mm 1-40mm Max Measuring Length 9999.99m 9999.99m Measuring Accuracy +/- 0.5% +/- 0.5% Dimensions (LxWxH) 120 x 160 x 350mm 320 x 320 x 280mm Weight 2.2Kgs 12Kgs Optional Input/Output Roller Cages 85101001 (as per photo) Options in table below Part Number MCKM-MES25 MCKM-MES40BAE Roller Cage Options for MESSBOI 40BAE
Part Number KM85100185 KM85100186 KM85100189 KM86001454 Title Inlet and Outlet
Roller Cages (Pair)Inlet and Outlet
Roller Cages (Pair)Inlet Roller Cage
(Piece)Inlet or Outlet
Roller Cage (Piece)Photo
For Winding from an Unwinder Yes No No Yes For Winding out of a Cable Drum Rack No Yes Yes No Horizontal Roller Adjustment Yes Yes Yes Yes Vertical Roller Adjustment Yes Yes No Yes Max Cable Diameter 40mm 40mm 40mm 40mm Outlet Rollers OD 35mm 35mm - - Inlet Rollers OD 35mm 80mm 80mm 35mm Weight 10Kgs/Pair 10Kgs/Pair 5Kgs 5Kgs Housing Material Galvanised Steel Galvanised Steel Galvanised Steel Galvanised Steel Guiding Rollers Inlet Stainless Steel Plastic Plastic Stainless Steel Guiding Rollers Outlet Stainless Steel Stainless Steel - - - Cutting Devices + Accessories
MESSROL 670/1000 Cutting Device Options
Model Number MATIS 25M Cutter (Not suitable for Wire Ropes) MATIS 35M Cutter (Not suitable for Wire Ropes) MATIS 40 Lever Shear for cable (fine wire) Photo

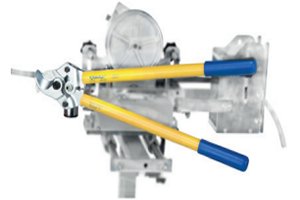

Mounted to MESSBOI 40BAE Yes (photo) No No Optional Holder/Mounting No Yes Aluminium Profile Max Material Cutting OD 25mm 35mm 40mm Dimensions (LxWxH) - - 110 x 130 x 720mm Weight 4.9Kgs 3.9Kgs 8.3Kgs Part Number KM85100163 KM85100162 KM86001132 MESSROL 670/1000 Cutting Device Accessories

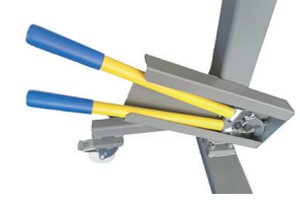

Model Number Holder for MATIS 35M Cutter Aluminium Profile for Mounting MESSBOI 40BAE onto MESSROL Photo
Mount onto Basic Frame Yes Yes Dimensions (LxWxH) 150 x 50 x 400mm - Weight 2.5Kgs - Part Number KM85100558 KM86100005 Additional Info - With mounting plates for roller cages, measuring device, housing for the counter and lever shear - Coiling & Spooling Options
MESSROL 670/1000 Adjustable Cable Coiling Options
Model Number: 480ST 670ST 850ST 1000ST 480SL 800SL Max Coil OD 480mm 670mm 850mm 1000mm 480mm 800mm Coiling Width 80-250mm 80-250mm 80-250mm 80-250mm 50-250mm 50-250mm Approx. Adjustable
Core Size (mm)200/250/
300/350250/400/
500250/350/450/
550/650250/350/450/
550/650200-370 300-550 Approx. Adjustable
Core Size (Inch)8/10/
12/14"10/16/20" 10/14/18/
22/26"10/14/18/
22/26"8-15" 12-22" Max Coil Weight 50Kgs 80Kgs 80Kgs 80Kgs 65Kgs 80Kgs Coiler Weight 25Kgs 28Kgs 32Kgs 38Kgs 40Kgs 70Kgs Part Number KM85100557 KM85100465 KM85100466 KM85100884 KM85100083 KM85100174 MESSROL 670/1000 Collapsible Cable Coiler Option
Model Number 600SP Max Coil OD 600mm Max Coiling Width 120mm Approx. Core ID 300mm (12") Max Coil Weight 25Kgs Coiler Weight 8Kgs Part Number KM85100091 MESSROL 670/1000 Cable Spooling Options
Model Number 800MB 800RM Max Spool OD 800mm 800mm Spool Width Max 395mm (at bore hole 40mm)
Max 470mm (at bore hole 80mm)Max 430mm (at bore hole 35mm)
Max 445mm (at bore hole 50mm)
Max 475mm (at bore hole 85mm)Drum Bore 40-80mm 35-85mm Spool Winding Axle 30mm OD 30mm OD Max Loading Capacity 60Kgs 100Kgs Weight 8Kgs 10Kgs Part Number KM85100435 KM85100555
